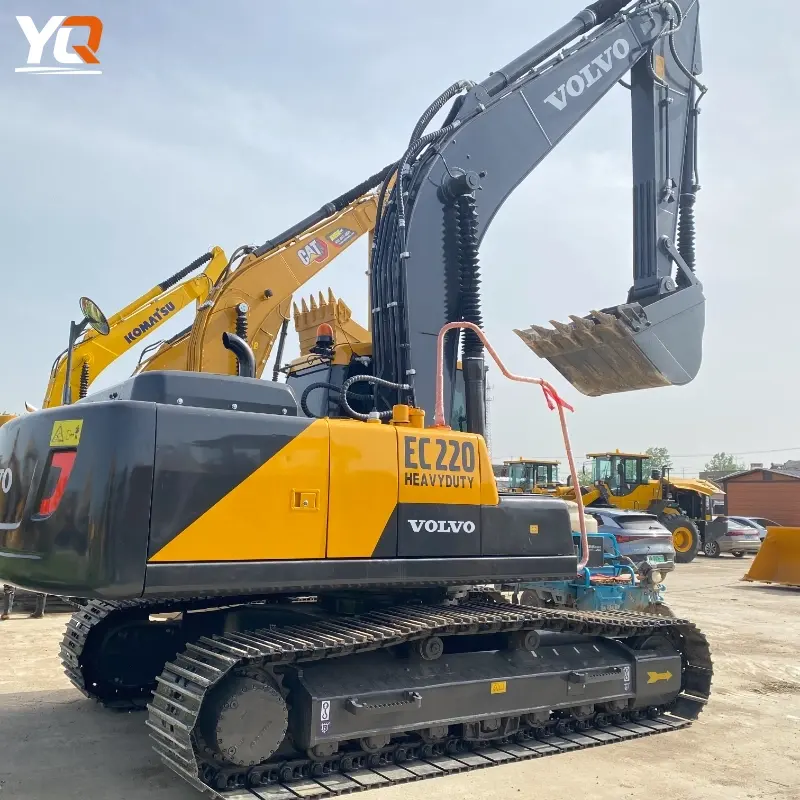

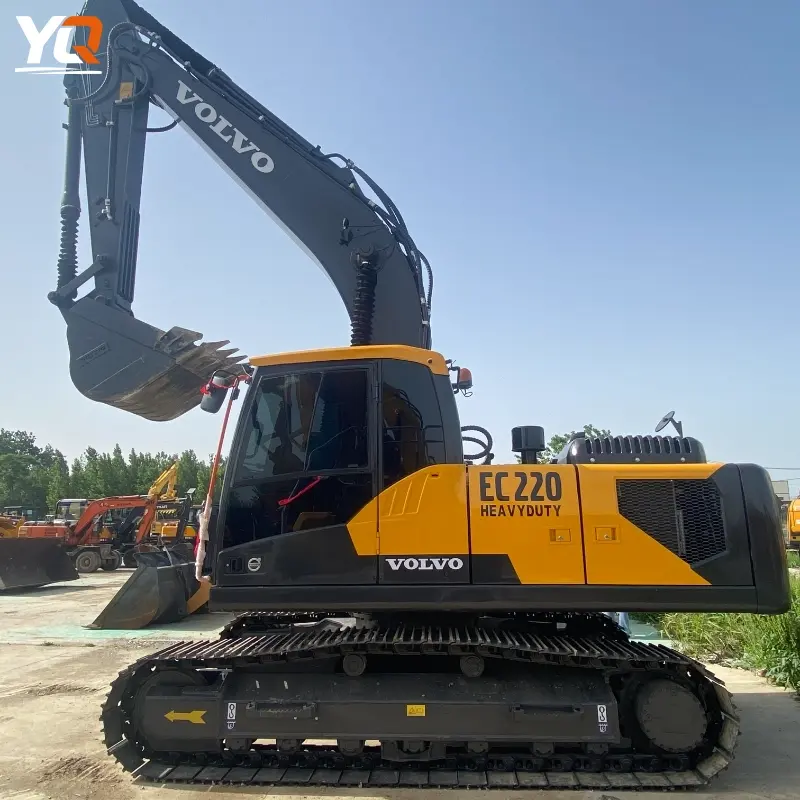

Used Volvo EC220 Tracked Hydraulic Excavator Competitive Price Well Maintained

Description

Core Parameters

Operating Weight: 21,300 – 23,800 kg

Bucket Capacity: 0.48 – 1.44 m³

Boom Length: 5.7 m

Arm Length: 2.9 m

Upper Structure Width: 2,500 mm

Overall Width: 2,990 mm

Tail Swing Radius: 2,850 mm

Engine Parameters

Engine Model: Volvo D6E

Maximum Power (ISO9249/SAE J1349): 115 kW (156 hp) / 1,800 r/min

Gross Power (ISO14396/SAE J1995): 123 kW (167 hp)

Maximum Torque: 730 Nm / 1,350 r/min

Fuel Tank Capacity: 300 L

Engine Oil Capacity: 25 L

Engine Coolant Capacity: 21 L

Working Performance Parameters

Maximum Digging Reach: 9,930 mm

Maximum Digging Depth: 6,730 mm

Bucket Digging Force (SAE J1179, Normal): 123 kN

Bucket Digging Force (SAE J1179, Boost): 130 kN

Arm Digging Force (SAE J1179, Normal): 96 kN

Arm Digging Force (SAE J1179, Boost): 102 kN

Lifting Capacity at Chassis: 9,540 kg (Lifting Distance/Height: 4.0/1.5 m)

Swing & Travel Parameters

Maximum Swing Speed: 11 r/min

Maximum Swing Torque: 83 kN·m

Maximum Traction Force: 183 kN

Maximum Travel Speed (High/Low): 5.6 / 3.5 km/h

Gradeability: 35°

Swing Reduction Gear Oil Capacity: 6.8 L

Travel Reduction Gear Oil Capacity (Each Side): 3.5 L
