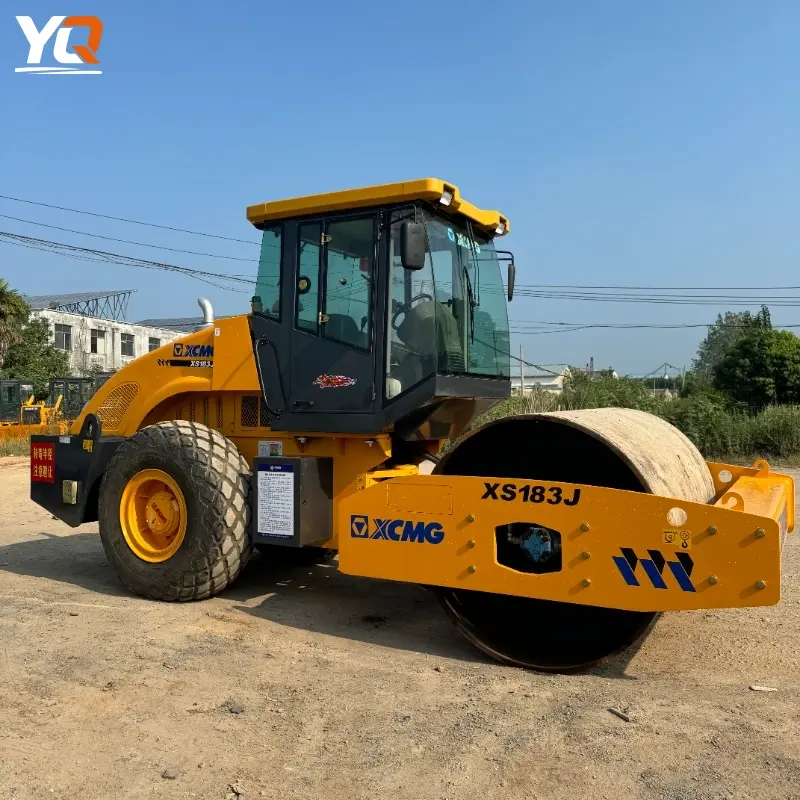

Used 183 Vibratory Road Roller Stable Performance Construction Equipment

Basic Information

• Equipment Model: XS183J
• Overall Operating Weight: 18000 kg
• Product Type: Mechanical Single Drum Vibratory Roller

Compaction System

• Drum Diameter: 1590 mm
• Drum Width: 2130 mm
• Vibration Frequency: 30/35 Hz
• Nominal Amplitude: 1.9/0.9 mm
• Centrifugal Force: 380/200 kN
• Drum Structure: Fully Welded Heavy-duty Seamless Steel Drum
• Vibration Mode: Dual-frequency & Dual-amplitude

Engine Performance

• Engine Model: Weichai WP6G150E331 / Yuchai YC6J150-T302
• Rated Power: 110 kW
• Rated Speed: 2200 r/min
• Emission Standard: China III
• Fuel Consumption: ≤ 9 L/h
• Air Filter: Double-stage Dry-type Air Filter

Mobility & Maneuverability

• Travel Speed (Forward/Reverse): 0-6.8/0-7.8 km/h
• Theoretical Climbing Capacity: 30%
• Minimum Turning Radius: 6200 mm
• Wheelbase: 2700 mm
• Minimum Ground Clearance: 320 mm
• Steering Angle: ±35°

Dimensions & Capacities

• Overall Length: 5850 mm
• Overall Width: 2200 mm
• Overall Height: 3150 mm
• Fuel Tank Capacity: 220 L
• Hydraulic Oil Tank Capacity: 150 L
• Cooling System Capacity: 30 L
• Battery Specification: 24 V (2 × 12 V/120 Ah)

Operation & Safety

• Control Mode: Mechanical Lever Control with Ergonomic Layout
• Operator Seat: Adjustable Shock-Absorbing Seat with Armrests
• Operating Noise: ≤ 82 dB(A)
• Emergency Stop Button: Easy-access Front & Rear Emergency Shutdown
• ROPS/FOPS: Optional Foldable Roll-Over Protective Structure & Falling-Object Protective Structure
