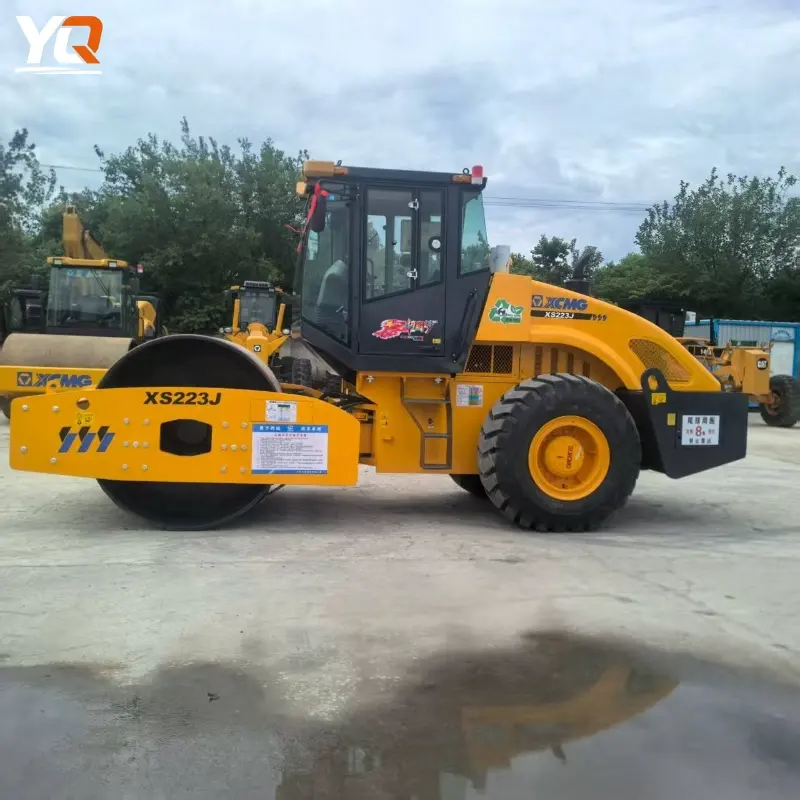

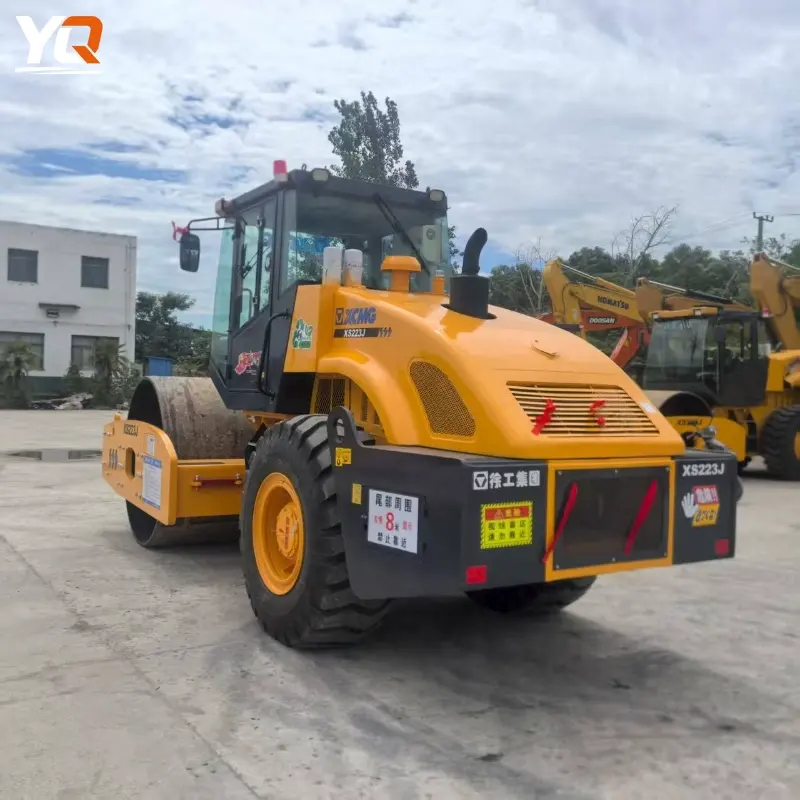

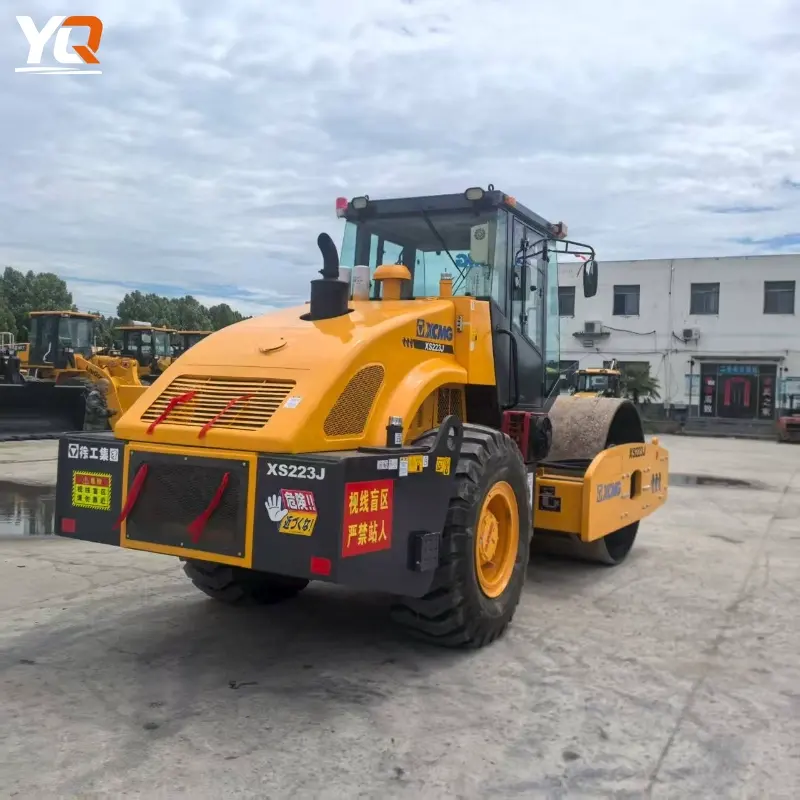

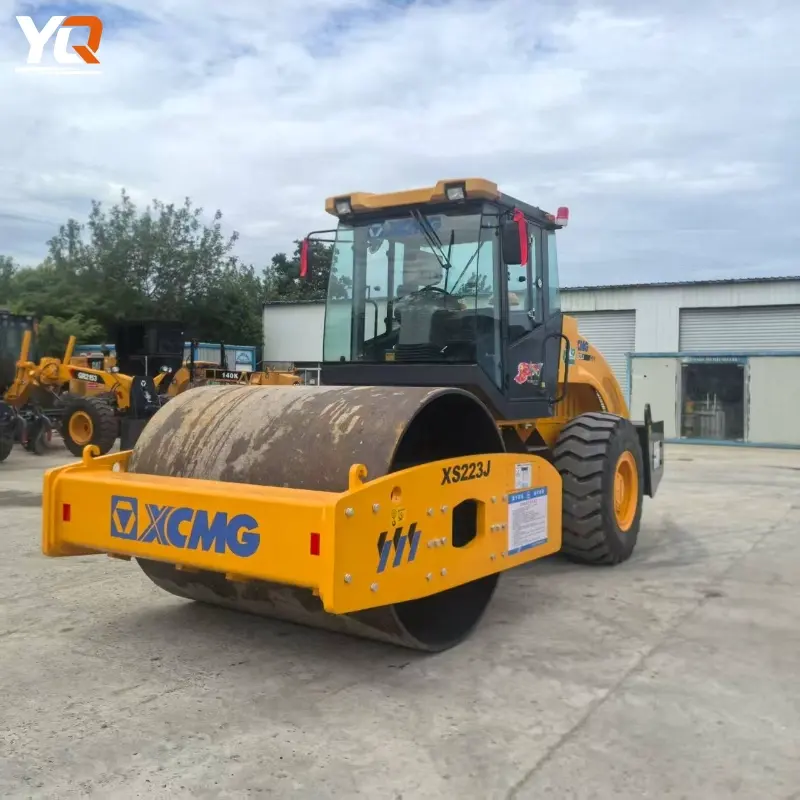

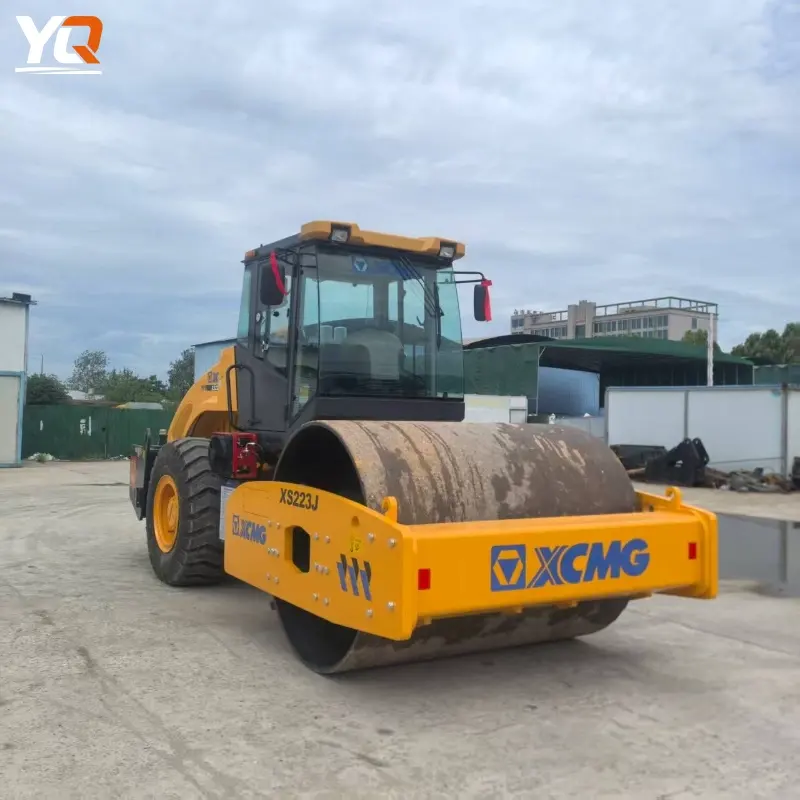

Second Hand XS223J Road Roller High Quality Engineering Machinery

Description

Basic Information

• Equipment Model: XS223J
• Overall Operating Weight: 22000 kg
• Product Type: Mechanical Single Drum Vibratory Roller
• Static Linear Load: 516 N/cm
• Vibration Wheel Static Load Distribution: 11000 kg
• Drive Axle Load Distribution: 11000 kg

Compaction System

• Drum Diameter: 1600 mm
• Drum Width (Compaction Width): 2130 mm
• Vibration Frequency: 28/33 Hz
• Nominal Amplitude: 1.86/0.93 mm
• Centrifugal Force: 374/290 kN
• Drum Structure: Fully Welded Heavy-duty Seamless Steel Drum
• Vibration Mode: Dual-frequency & Dual-amplitude
• Steering Angle: ±33°
• Oscillation Angle: ±11°

Engine Performance

• Engine Model: Shangchai SC7H190.2G3 / SC8D185.2G2B1
• Rated Power: 136/140 kW
• Rated Speed: 1800 r/min
• Emission Standard: China II (Non-road Machinery)
• Fuel Consumption: ≤ 12 L/h (approximate value)

Mobility & Maneuverability

• Travel Speed (Forward/Reverse): 0-2.69/0-5.25/0-11.12 km/h (Forward Gears)；0-2.66/0-5.27 km/h (Reverse Gears)
• Theoretical Climbing Capacity: 30%
• Minimum Turning Radius: 6500 mm
• Wheelbase: 3230 mm
• Minimum Ground Clearance: 440 mm
• Steering Angle: ±33°

Dimensions & Capacities

• Overall Length: 6220/6320 mm
• Overall Width: 2390/2430 mm
• Overall Height: 3200 mm
• Fuel Tank Capacity: 300 L
• Hydraulic Oil Tank Capacity: 150 L
• Water Tank Capacity: 600 L
• Battery Specification: 24 V (2 × 12 V/120 Ah)

Operation & Safety

• Control Mode: Mechanical Lever Control with Ergonomic Layout
• Operator Seat: Adjustable Shock-Absorbing Seat with Armrests
• Operating Noise: ≤ 85 dB(A)
• ROPS/FOPS: Optional Foldable Roll-Over Protective Structure & Falling-Object Protective Structure
• Optional Configuration: Padfoot Drum Attachment
