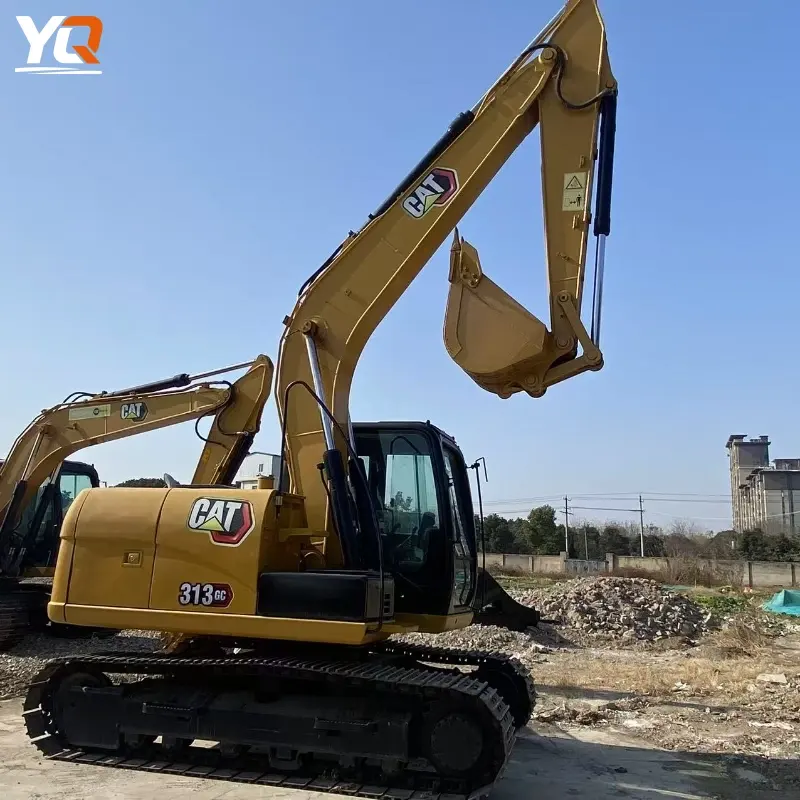

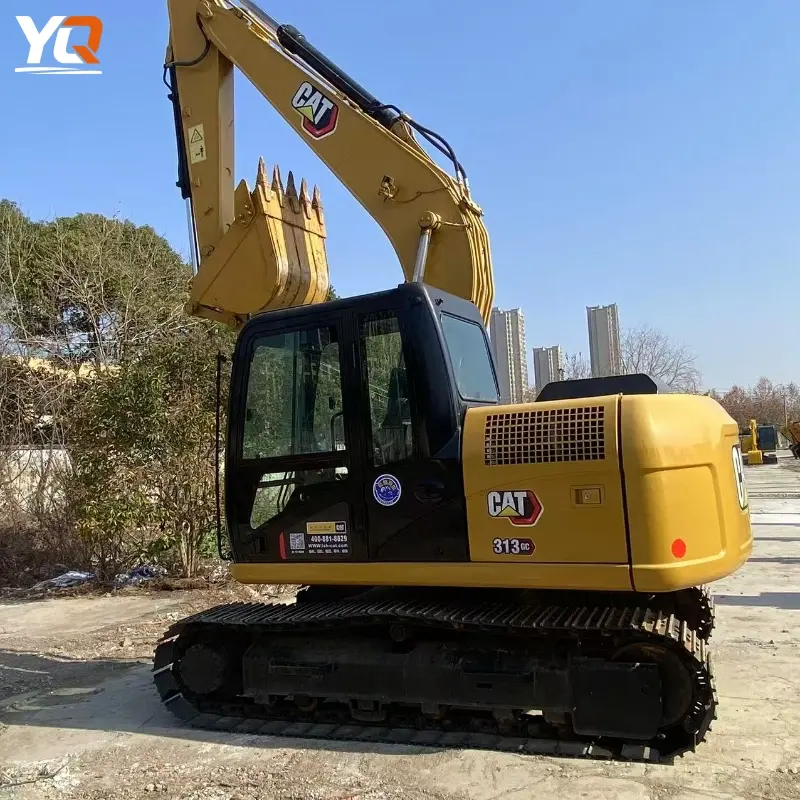

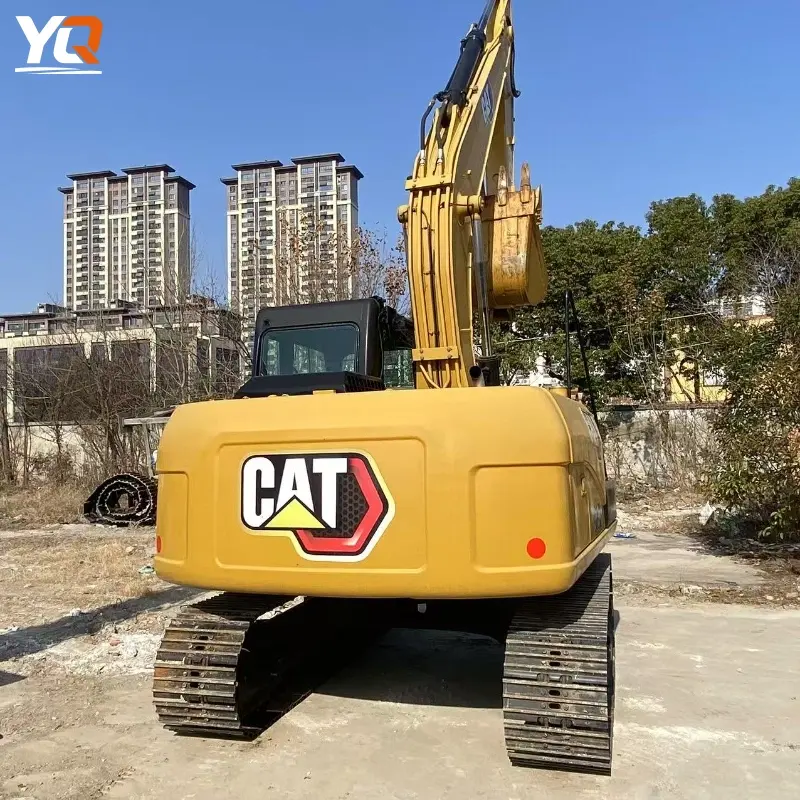

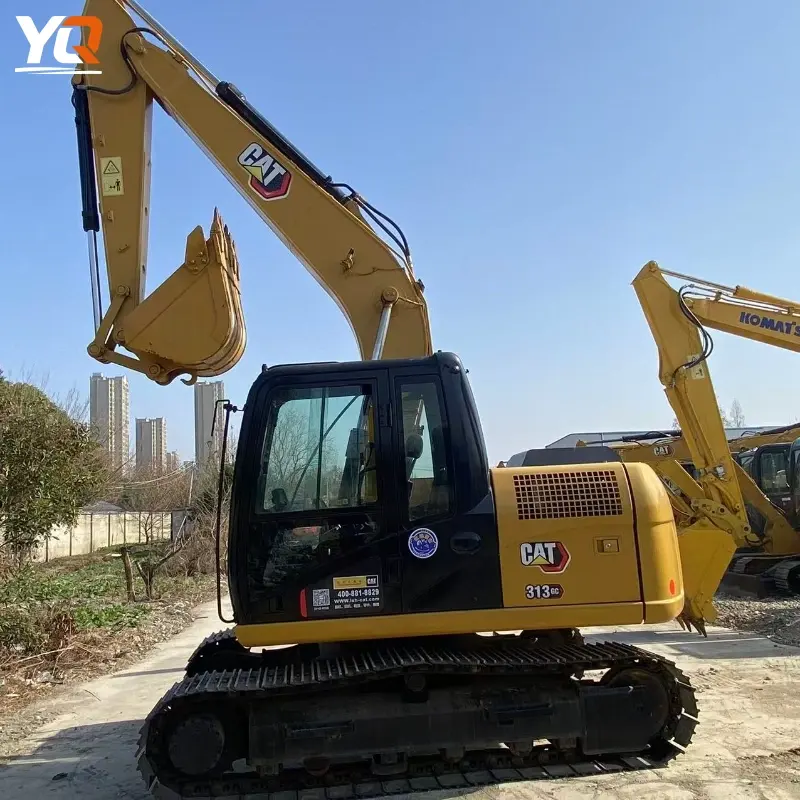

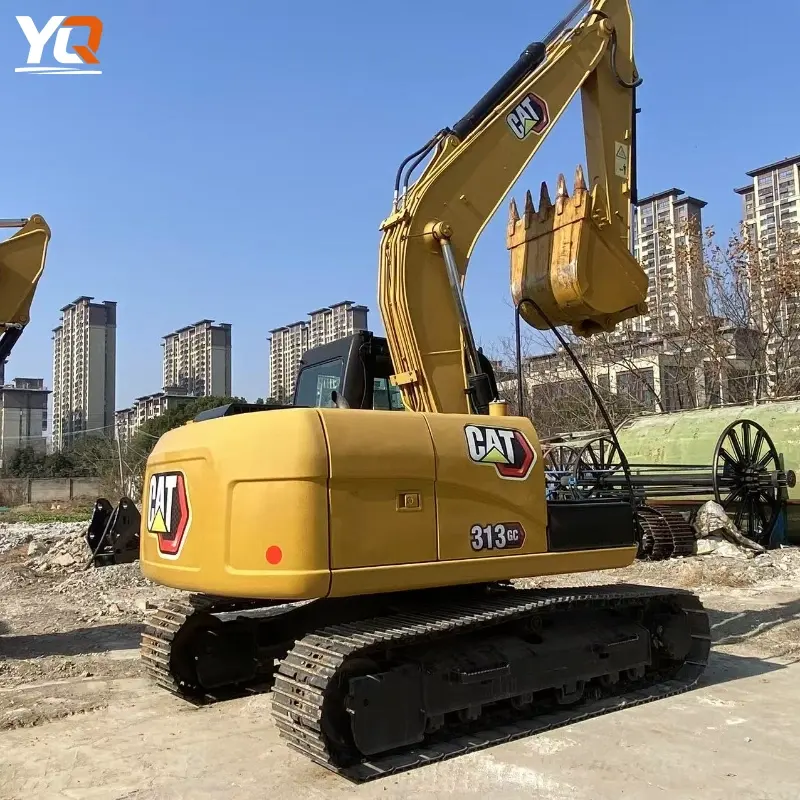

Reliable Used CAT 313D2GC Hydraulic Excavator Low Fuel Consumption

Description

Basic Information

• Model Name: Caterpillar 313D2 GC Series 2 Hydraulic Excavator
• Operating Weight: Approx. 12,500 kg (≈ 12.5 t)
• Standard Bucket Capacity: Approx. 0.53 m³ (general-purpose bucket; may vary slightly depending on bucket type)
• Engine Model: Cat® C4.4 Turbocharged Diesel Engine
• Displacement: Approx. 4.4 L (268.5 in³)

⚙️ Engine Performance

Item	Value
Rated Net Power (SAE J1349 / ISO 9249)	~70.2 kW (≈ 94 hp)
Rated Gross Power (ISO 14396)	~74.5 kW (≈ 100 hp)

🛠️ Hydraulic System

Parameter	Value
Main Pump Maximum Flow	~232 L/min
Swing System Maximum Flow	~116 L/min
Pilot System Maximum Flow	~21.9 L/min
Implement Working Pressure	30,500 kPa
Travel System Working Pressure	35,000 kPa
Swing System Working Pressure	23,000 kPa

💪 Power & Operating Performance

Item	Value
Swing Speed	~11.2 rpm
Maximum Tractive Force	~114 kN
Bucket Digging Force (ISO)	≈ 95 kN
Arm Digging Force (ISO)	≈ 65 kN

📏 Working Range

Parameter	Value
Maximum Digging Depth	~5,570 mm
Maximum Digging Reach	~8,210 mm
Maximum Digging Height	~8,530 mm
Maximum Dumping Height	~6,070 mm
Tail Swing Radius	~2,200 mm
