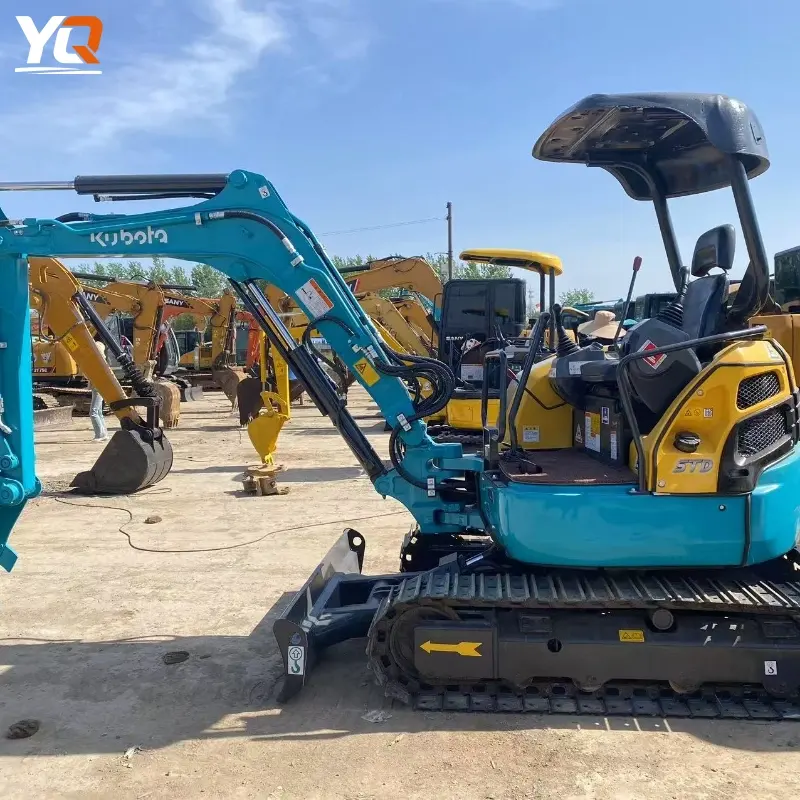

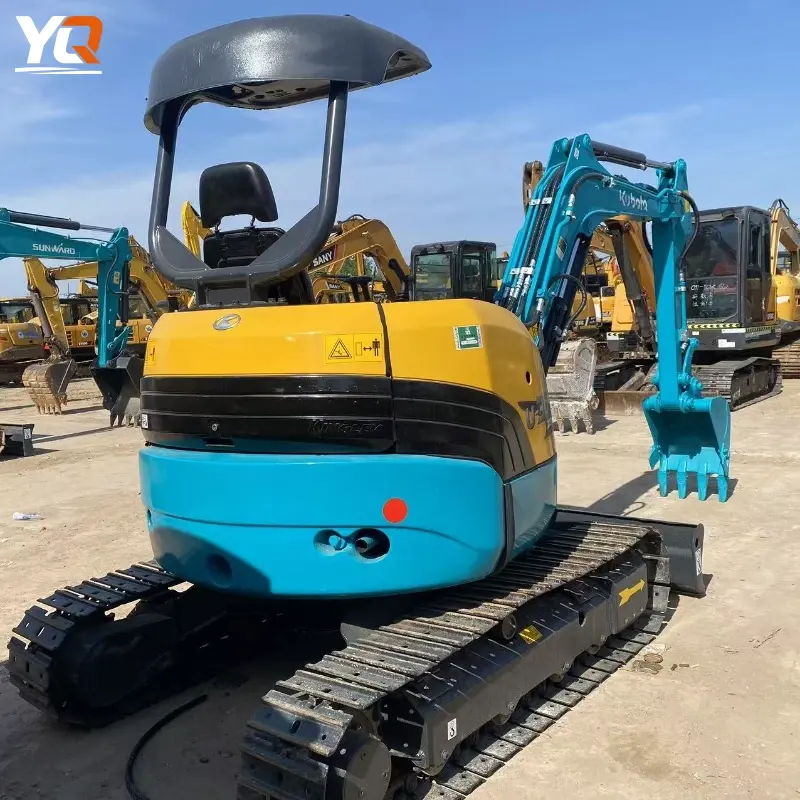

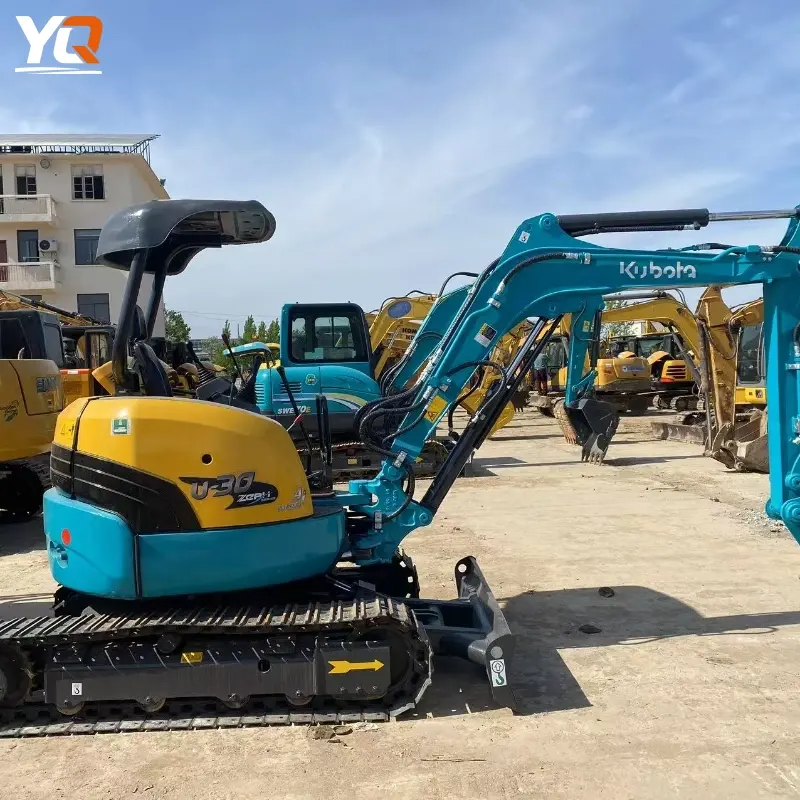

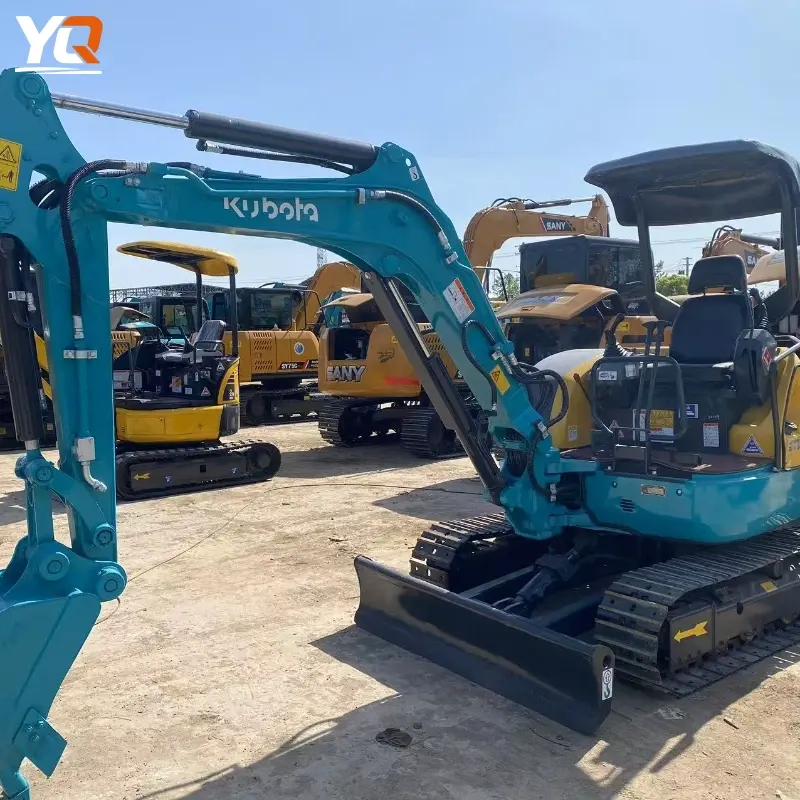

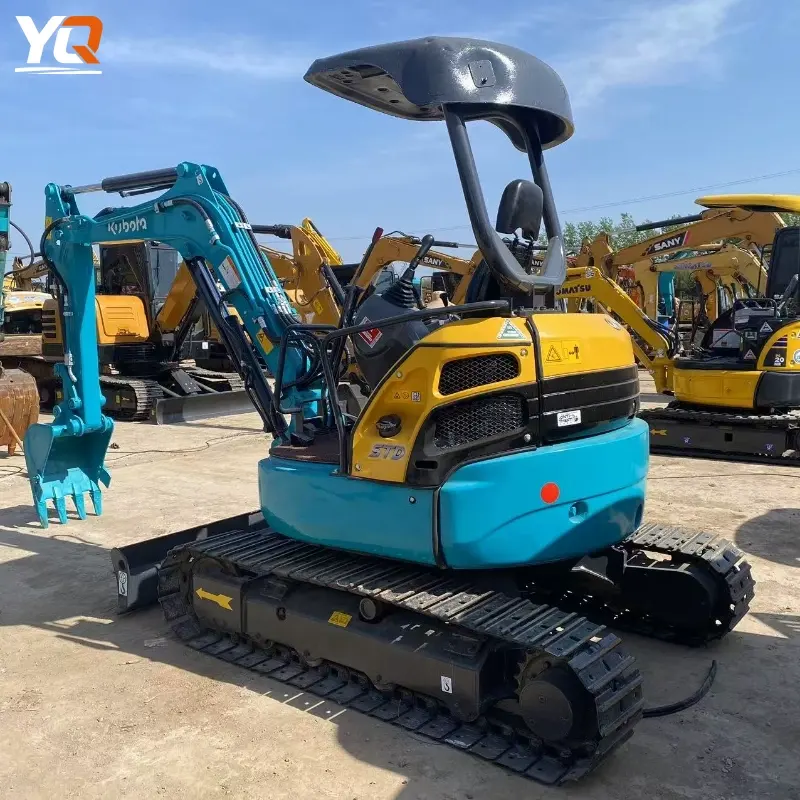

Original Paint Used Kubota U30 Excavator 3 Ton Low Price

Description

I. Basic Specifications of the Machine

Parameters Values
Model: Kubota U30 Mini Tracked Excavator
Operating Weight: Approx. 3,030 – 3,650 kg (different versions/configurations)
Bucket Capacity: 0.08 – 0.10 m³ (standard bucket)
Tail Turning Radius: Small tail/zero tail design, approx. 790–900 mm
Track Width: 300 mm (standard steel tracks)
Minimum Ground Clearance: ~287 – 290 mm

II. Engine and Power

Items Values
Engine Model: Kubota D1703-E3 / D1803 Series Diesel Engine
Displacement: ~1.647 L – 1.826 L
Rated Output Power (Gross): 20.0–20.5 kW (≈27–27.5 hp) @ ~2,150-2,200 rpm
Fuel Tank Capacity: ~40-46 L

III. Operational Performance
Operating Specifications Values
Maximum Digging Depth ~2,820 – 2,880 mm
Maximum Digging Height: ~4,250 – 4,600 mm
Maximum Unloading Height ~2,865 – 3,175 mm
Maximum Digging Radius (Ground) ~4,905 – 4,965 mm
Maximum Vertical Wall Digging Depth ~2,290 – 2,305 mm
Bug Breaking Force: ~26.5–30 kN (≈2,700-3,059 kgf)

IV. Travel and Mobility
Specifications Parameters
Travel Speed ​​(1/2 Speed) ~3.0 / 4.6 km/h
Swing Speed ​​~9 rpm
Climbing Ability: ~30°

V. Dimensions (Transportation Condition)
Dimensions Values
Overall Length ~4,485 – 4,545 mm
Overall Width ~1,550 mm
Overall height ~2,440 – 2,485 mm
Track center distance ~2,081–2,100 mm
Dozer blade width × height ~1,550 × 345 mm
