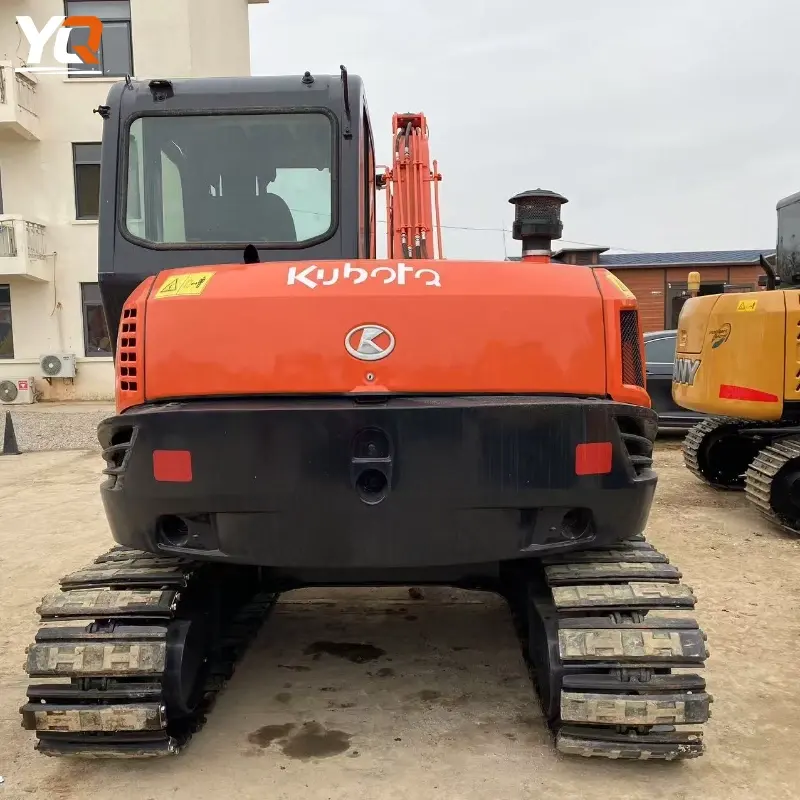

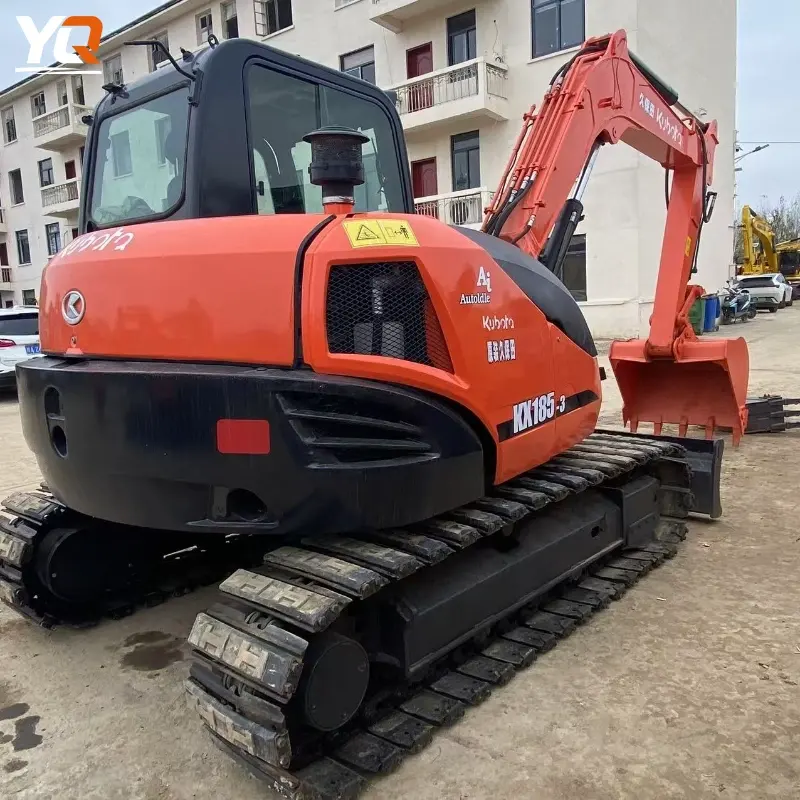

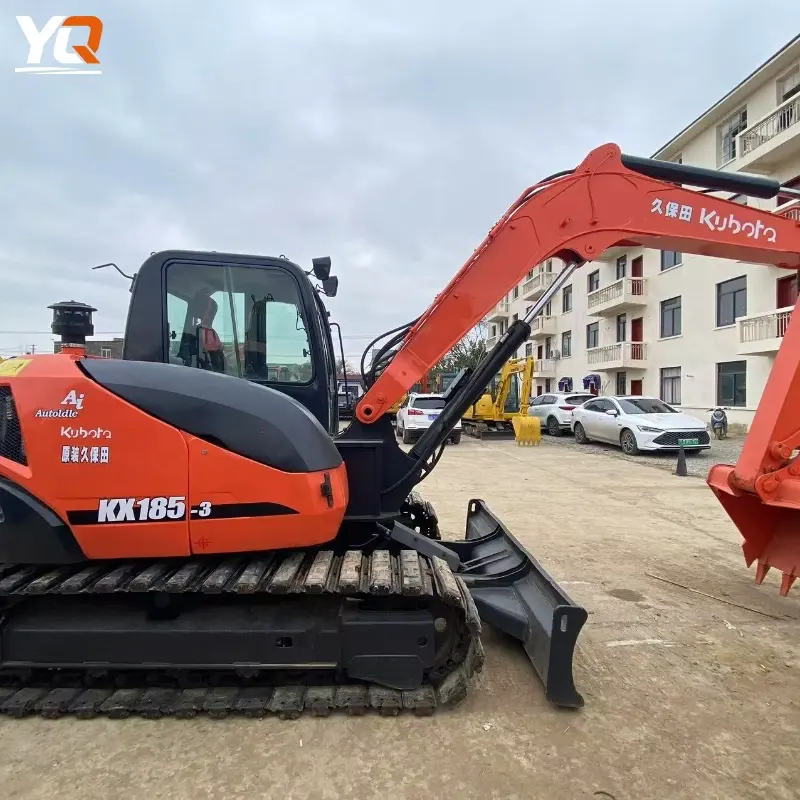

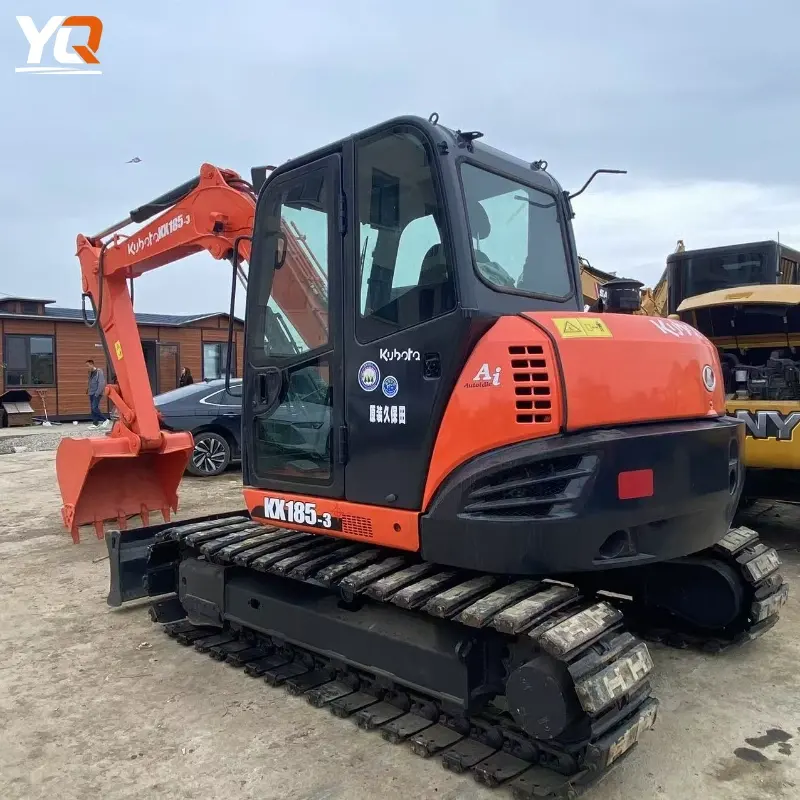

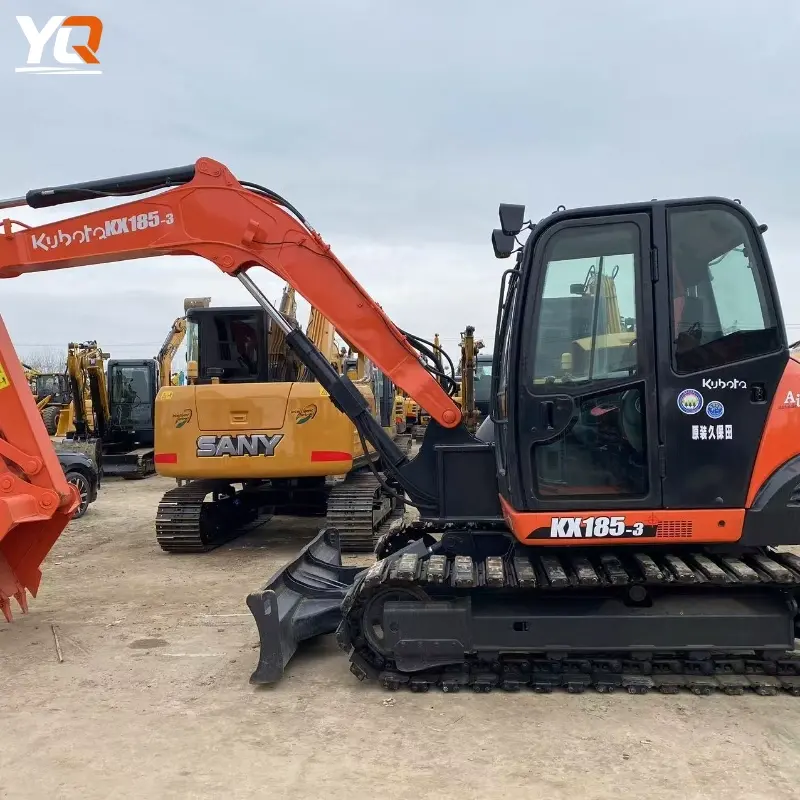

High-Quality Used Kubota KX185 Excavator Second-hand Construction Machine

Description

I. Basic Specifications of the Machine

Parameters Values
Model: Kubota KX185 / KX185-3 (Small/Medium Excavator)
Operating Weight: ≈ 8,245 kg (approx. 8.2 tons)
Standard Bucket Capacity: ≈ 0.35 m³
Standard Bucket Width: ≈ 800 mm
Track Width: 450 mm
Fuel Tank Capacity: ≈ 115 L
Transport Dimensions (L×W×H): 6450×2200×2530 mm
Minimum Ground Clearance: ≈ 390 mm

II. Engine & Power

Item Values
Engine Model: Kubota V3307DI-T
Displacement: 3.331 L
Rated Power: 47.8 kW (≈ 65 hp) @ 2000 rpm
Cooling Method: Liquid Cooling

III. Performance Parameters
Indicators Values
Travel Speed ​​(High/Low): ≈ 4.9 / 2.7 km/h
Swing speed ≈ 9.5 rpm
Climbing ability ≈ 30°
Bug digging force ≈ 65.2 kN

IV. Excavation Operating Range
Item Values
Maximum digging depth ≈ 4,290 mm
Maximum vertical digging depth ≈ 3,490 mm
Maximum digging height ≈ 7,040 mm
Maximum unloading height ≈ 4,980 mm
Maximum digging radius ≈ 7,010 mm
Minimum turning radius (front end) ≈ 2,410 mm
Minimum turning radius (rear end) ≈ 1,460 mm
