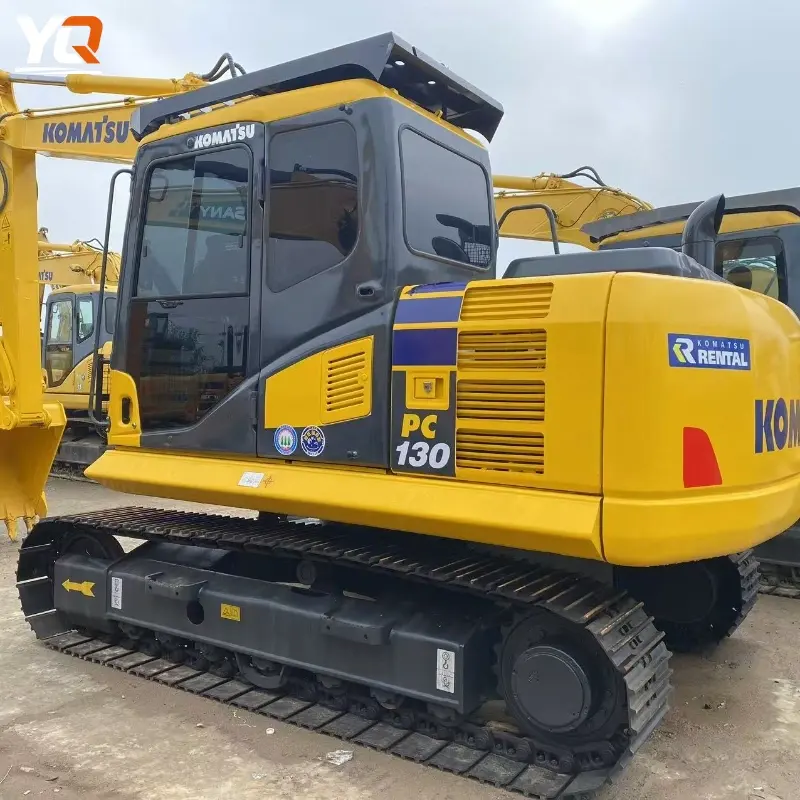

Used Komatsu PC130 Medium Excavator Reliable Performance Well Maintained

Description

I. Basic Machine Parameters

Parameter Value / Description
Model Name: Komatsu PC130-8 Hydraulic Excavator
Operating Weight: ~ 12,380 – 12,740 kg (≈ 12.4 t)
Engine Model: Komatsu SAA4D95LE-5 4-cylinder turbocharged intercooled diesel engine
Rated Net Power: 68.4 kW (≈ 91.7 hp) @ 2200 rpm
Rated Gross Power (Gross): 72.1 kW (≈ 96.6 hp) @ 2200 rpm
Standard Bucket Capacity: 0.18 – 0.60 m³ (approx. 0.24 – 0.78 yd³)

⛏️ II. Power and Hydraulic System

Item Parameter / Description
Engine Displacement: ~ 3.26 L (≈ 3.3 L)
Fuel System: Direct Injection + Turbocharging + Intercooling Design (Low Noise, Low Emissions)
Hydraulic Pump Type: Komatsu HydrauMind Variable Variable Piston Pump (Load Sensing System)
Maximum Hydraulic Flow Rate: ~ 241.5 L/min (63.8 gal/min)
Hydraulic Pressure: Main Working Circuit High Pressure Approx. ~26.5 MPa

🚶‍♂️ III. Motion Performance
Specifications (Approx.)
Travel Speed ​​(High/Low Speed): ~ 5.5 km/h / 2.9 km/h
Swing Speed: ~ 11 rpm
Climbing Ability: ~ 70% (≈ 35°)
Ground Pressure: ~ 32.6 kPa

📏 IV. Dimensions and Hydraulic Capacity
Dimensions / Hydraulic System (Approx.)
Total Transport Length: ~ 7590 mm
Total Transport Width: ~ 2590 mm
Total Transport Height: ~ 2875 mm
Track Ground Contact Length: ~ 2880 mm
Track Shoe Width: 600 mm
Fuel Tank Capacity ~247 L Hydraulic oil tank capacity ~90 L Engine oil capacity ~11.5 L Coolant capacity ~13.9 L

🛠️ V. Operating Scope Operating Specifications Values ​​(approx.) Maximum digging depth ~ 5,520 mm Maximum vertical digging depth ~ 4,980 mm Maximum digging height ~ 8,650 mm Maximum unloading height ~ 6,210 mm Maximum horizontal digging radius ~ 8,170 mm
