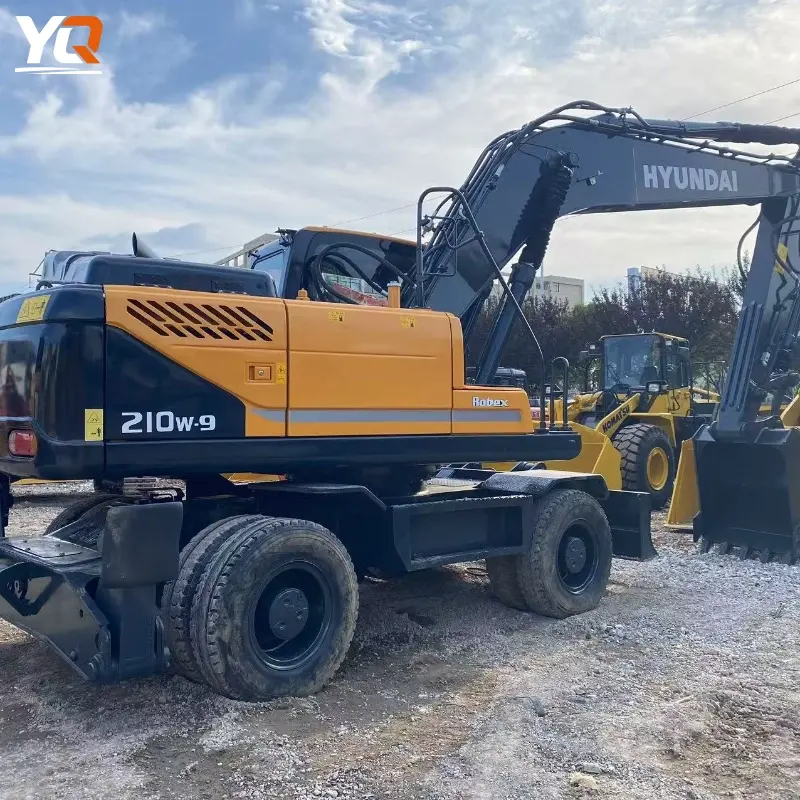

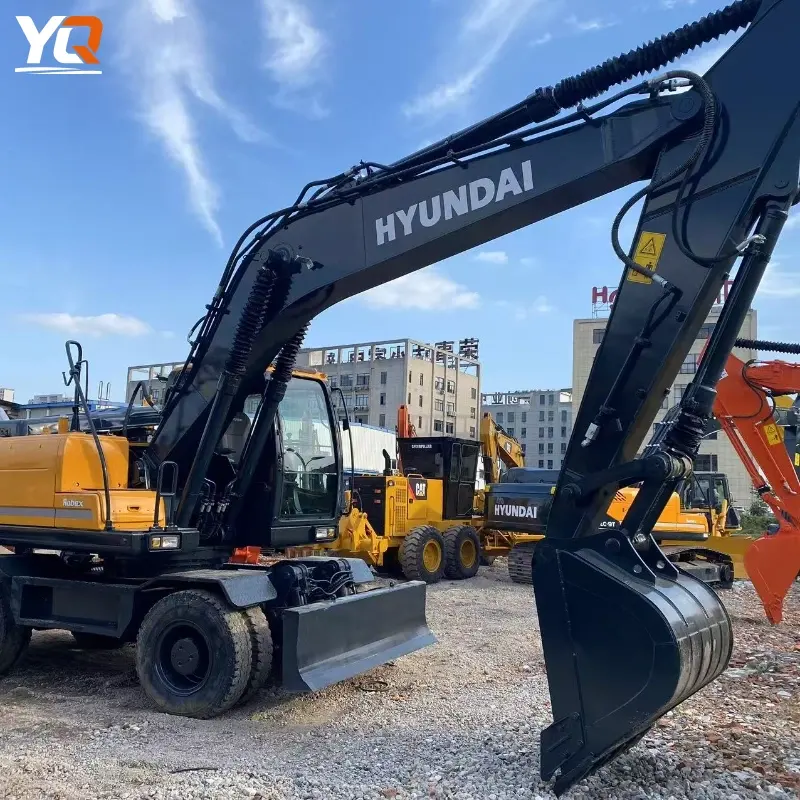

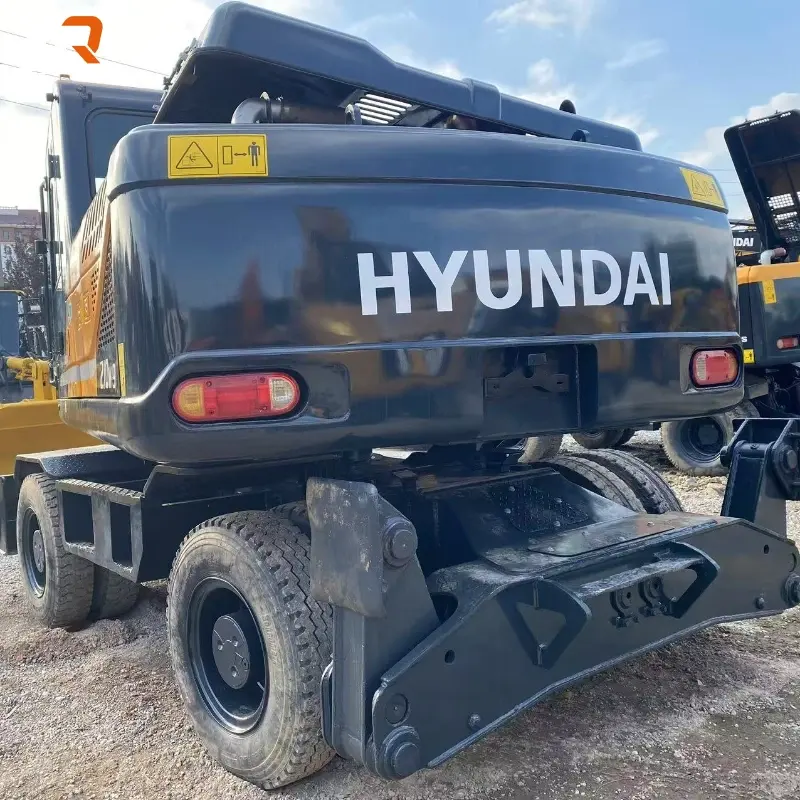

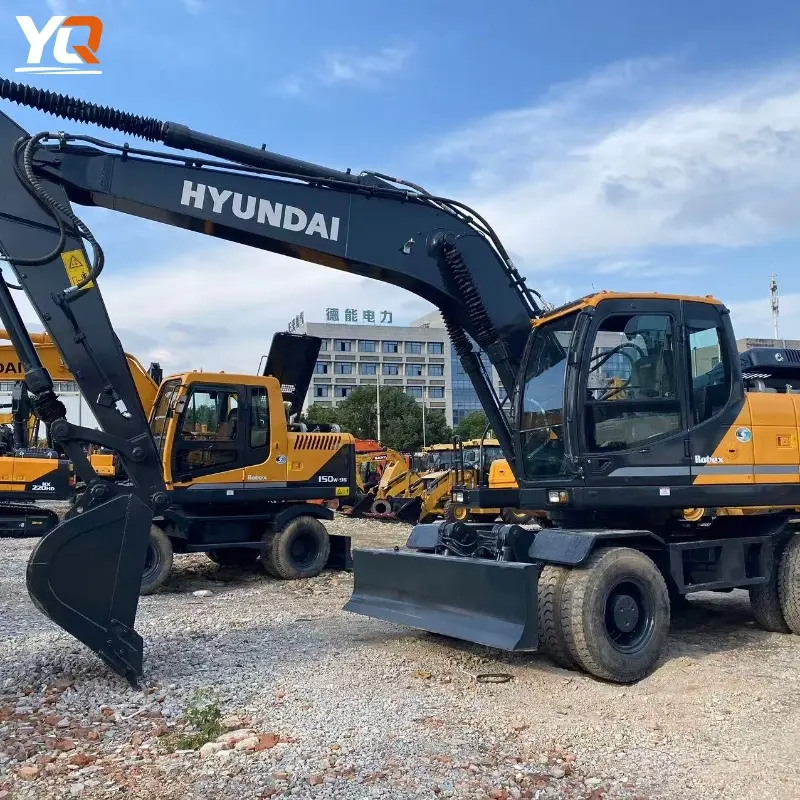

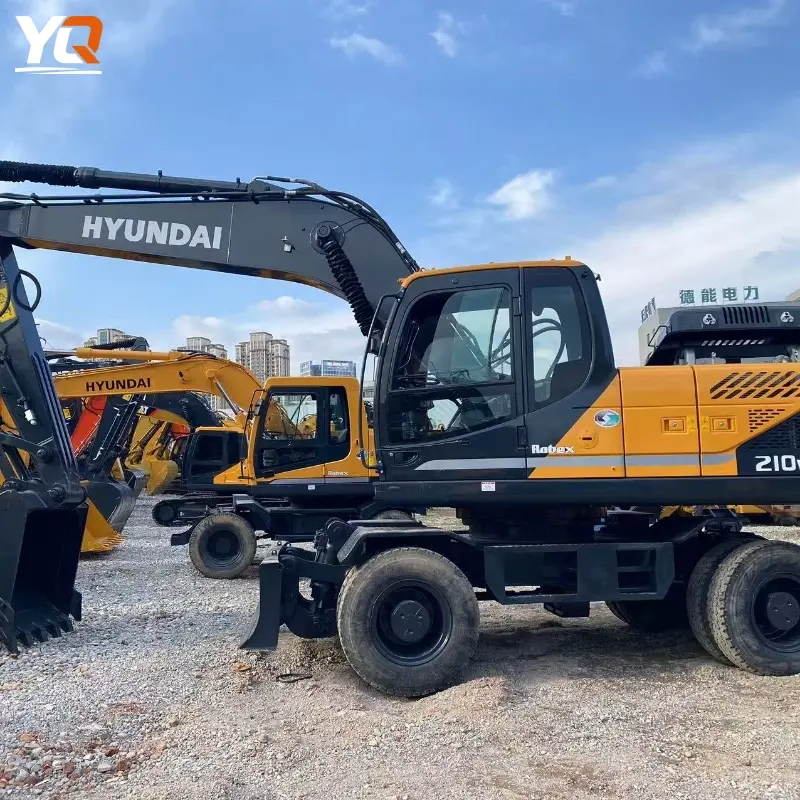

Used Hyundai 210 Wheeled Excavator Good Performance Urban Construction Equipment

Description

Basic Specifications

Parameters Values
Model: Hyundai R210W-9 / R210W-9S / HW210A Wheeled Hydraulic Excavator
Operating Weight: Approx. 20,500 – 21,900 kg (approx. 20.5 – 21.9 t)
Standard Bucket Capacity: 0.5 – 1.34 m³ (depending on bucket size)
Tail Turning Radius: ~2,790 – 2,800 mm
Overall Length: ~9,500 mm (9.5 m)
Overall Width: ~2,530 mm
Overall Height: ~3,180 – 3,440 mm
Wheelbase: ~2,800 mm

🔥 2. Engine & Power

Item Parameters
Engine Model: Hyundai HM5.9 / Cummins B5.9-C (6-cylinder turbocharged diesel engine)
Displacement: ~5.88 L
Rated Power: 124 kW (≈168 hp) @ ~1950-2000 rpm (Some R210W-9S models are 178 hp / ~133 kW versions)
Maximum Torque ~68.4 kgf·m (≈670 N·m) @ ~1500 rpm
Emission Standard Tier 2 / Tier 3 (depending on market)

The new HW210A version is equipped with a higher-power EU Stage V/Cummins B6.7 engine, achieving ~127-129 kW (170-173 hp) output (official summary)

🛠️ 3. Hydraulics and Drive
Specifications
Hydraulic System Pressure ≈350 kgf/cm² (≈34.3 MPa) Working/Spinning Pressure
Main Pump Flow Rate Approximately 192-222 L/min for each pump (commercial/version variations)
Oscillating Speed ​​~11 rpm
Travel Speed ​​Up to ~30-35 km/h (forward/reverse dual speed)
Maximum traction force ~11,900-11,100 kgf (≈117-109 kN)
Maximum gradeability ~31.5 – 35° (≈62 – 70%)

🏗️ 4. Operational Performance
Indicators Values
Maximum digging depth ~6,380 mm (≈6.38 m)
Maximum digging height ~10,000 mm (≈10.0 m)
Maximum digging radius ~9,960 mm (≈9.96 m)
Maximum unloading height ~7,160 mm (≈7.16 m)
Minimum turning radius ~3,580 mm
Bug digging force ~133 – 149 kN (approx. 13.3-15.2 tonf)
Hoist digging force ~104 kN (approx. 10.4 tonf)

🛢️ 5. Fuel Tank and Fluid Capacity
Item Capacity
Fuel Tank ~310 L
Hydraulic Oil Tank ~165 L

📊 6. Typical Tires and Chassis

Item Specifications
Front/Rear Tires 10.0/20-14 or 10.00×20-14PR (Common Tire Configurations)
Wheel Track / Wheel Track Width ~1,914 mm (Wheel Track) / 2,800 mm (Wheel Track)
Ground Clearance ~345 mm
