I. Basic Machine Parameters
| Item | Parameter |
|---|---|

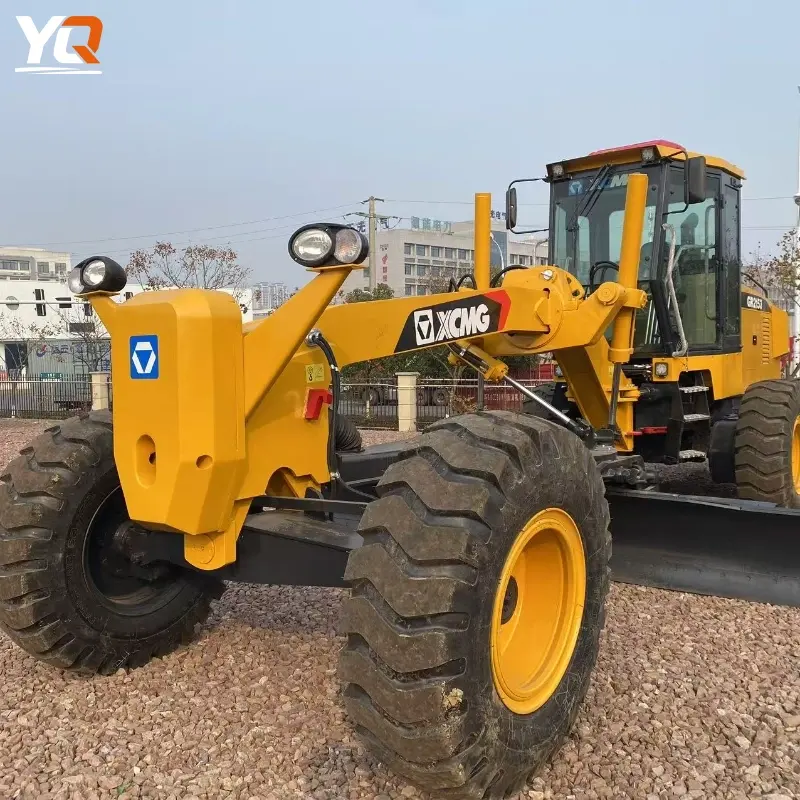

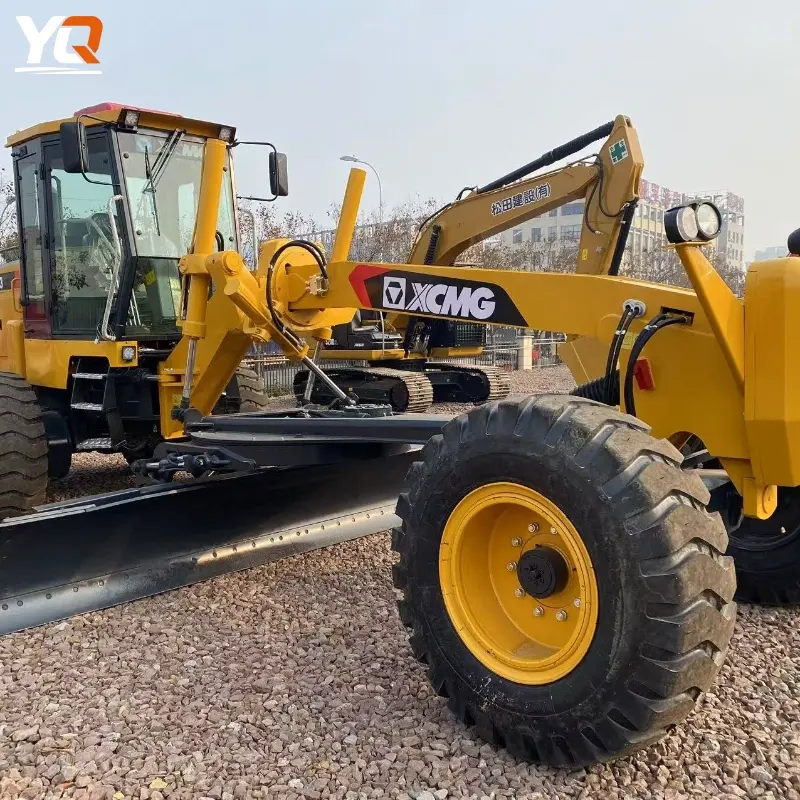

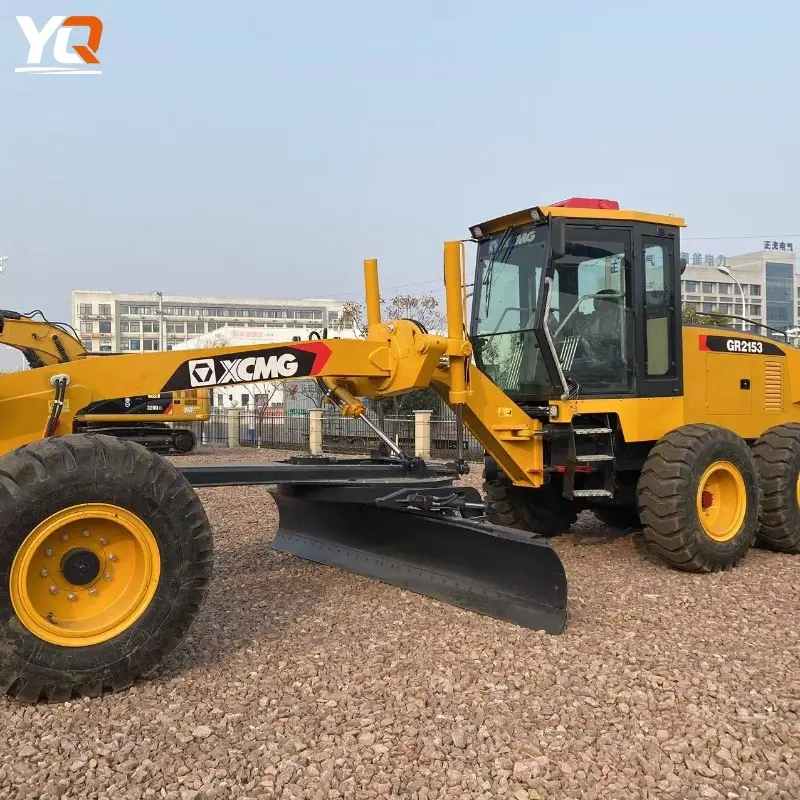

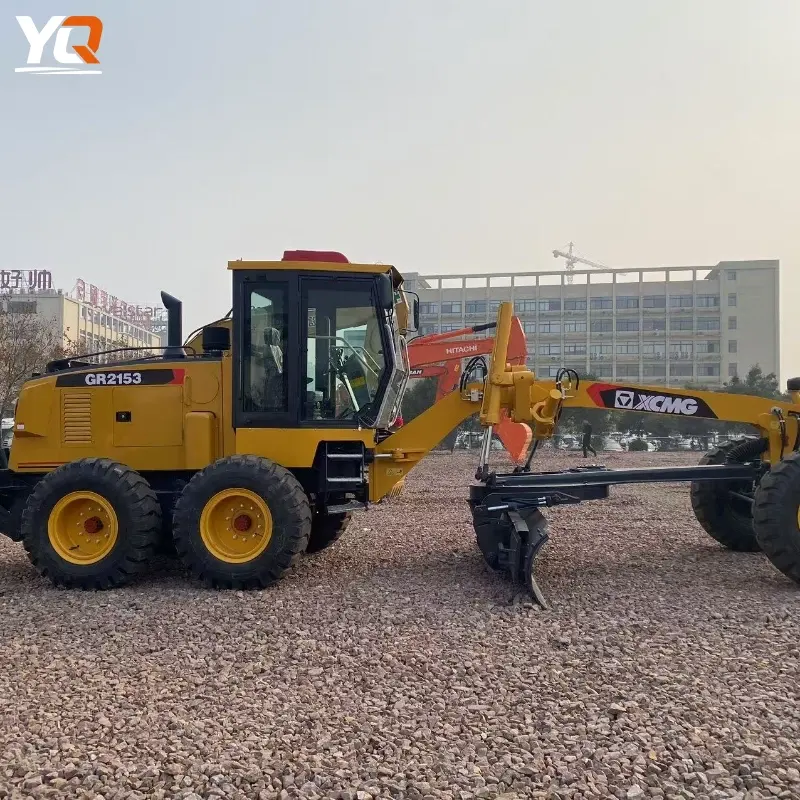

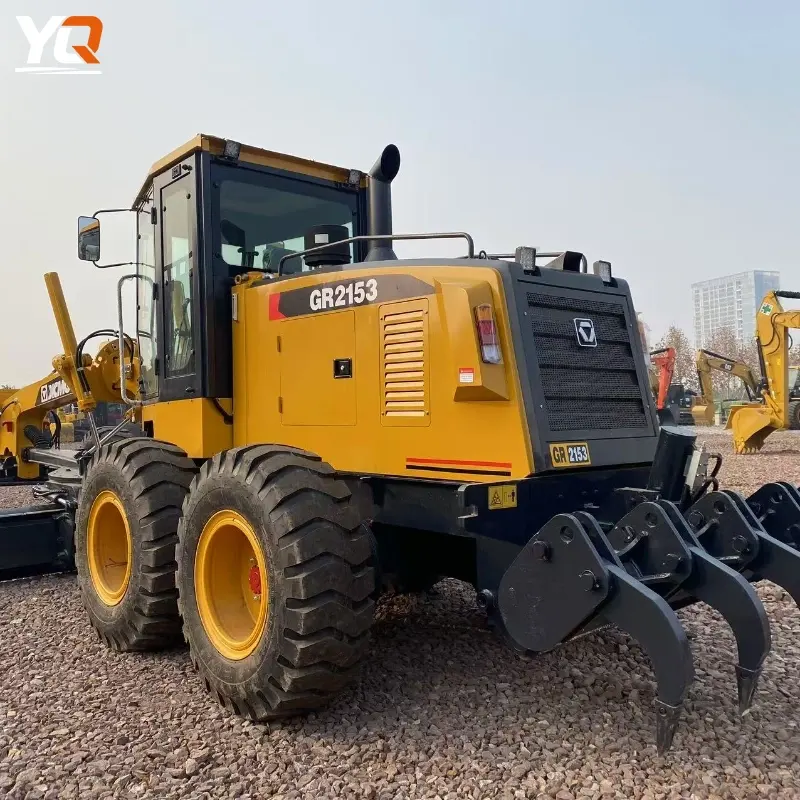

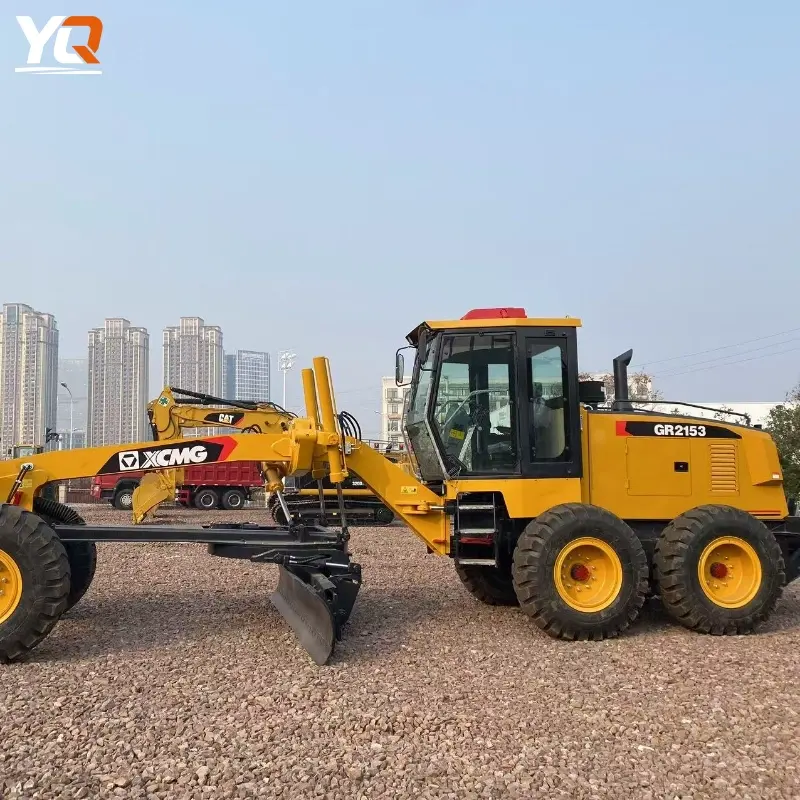

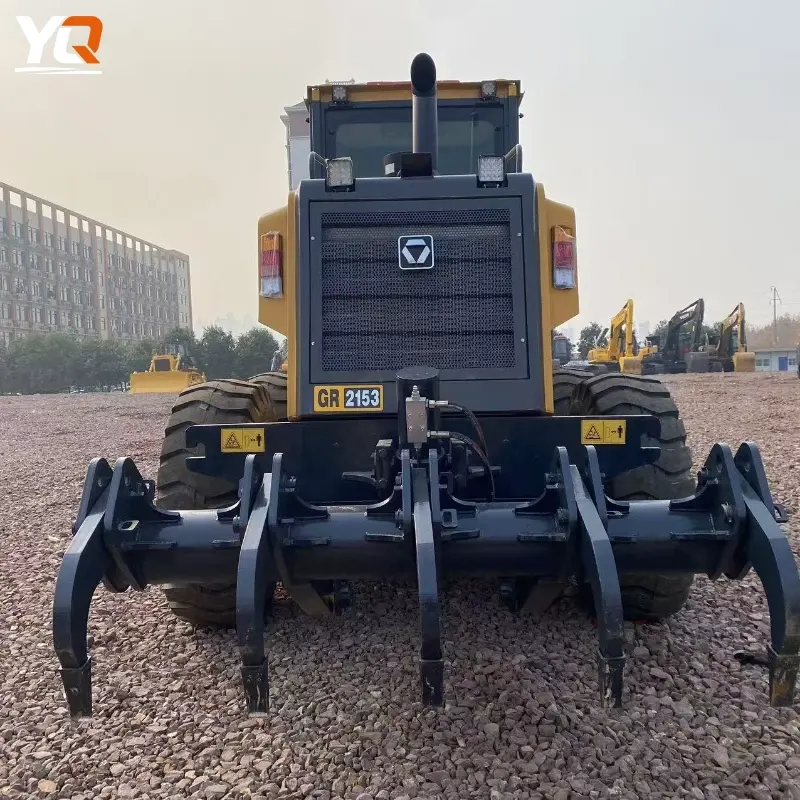

| Model | XCMG GR2153 Motor Grader |
| Standard Machine Weight | ~16,500 kg |
| Overall Dimensions (L × W × H) | 8,970 × 2,625 × 3,420 mm |
| Tire Specification | 17.5-25 |
| Front-to-Rear Axle Spacing | 6,219 mm |
| Mid-to-Rear Wheel Spacing | 1,538 mm |
| Front Axle Ground Clearance | 430 mm |
| Wheelbase Width | 2,156 mm |
I. Basic Machine Parameters
| Item | Parameter |
|---|---|
| Model | XCMG GR2153 Motor Grader |
| Standard Machine Weight | ~16,500 kg |
| Overall Dimensions (L × W × H) | 8,970 × 2,625 × 3,420 mm |
| Tire Specification | 17.5-25 |
| Front-to-Rear Axle Spacing | 6,219 mm |
| Mid-to-Rear Wheel Spacing | 1,538 mm |
| Front Axle Ground Clearance | 430 mm |
| Wheelbase Width | 2,156 mm |
🔥 II. Engine and Power
| Parameter | Value |
|---|---|
| Engine Model | Cummins QSB6.7 |
| Rated Power/Speed | 164 kW @ 2000 rpm (approx. 220 hp) |
| Fuel Tank Capacity | 280 L |
| Coolant Capacity | 50 L |
| Engine Oil Capacity | 24 L |
🚶♂️ III. Travel and Performance
| Parameter | Value |
|---|---|
| Forward Speeds | 5 / 8 / 11 / 19 / 23 / 38 km/h |
| Reverse Speeds | 5 / 11 / 23 km/h |
| Traction Force (f=0.75) | ≥ 85 kN |
| Maximum Gradeability | ≥ 25 % |
| System Working Pressure | 20 MPa |
| Transmission Hydraulic Pressure | 1.3 – 1.8 MPa |
🔄 IV. Steering and Maneuverability
| Item | Parameter |
|---|---|
| Maximum Front Wheel Steering Angle | ±48° |
| Maximum Front Wheel Lean Angle | ±17° |
| Maximum Front Axle Oscillation Angle | ±15° |
| Equalizer Bar Oscillation Angle | Front 15° / Rear 15° |
| Maximum Frame Articulation Angle | ±27° |
| Minimum Turning Radius | ~7.3 m |
🛠️ V. Moldboard (Blade) Performance
| Parameter | Value |
|---|---|
| Blade (Scraper) Length × Height | 4,270 × 610 mm |
| Maximum Lift Height | 400 mm |
| Maximum Cutting Depth | 500 mm |
| Maximum Side Tilt Angle | 90° |
| Cutting Angle Range | 28° – 70° |
| Rotation Angle | 360° |
🛢️ VI. Fluid Capacities
| System | Capacity |
|---|---|
| Hydraulic Oil | 110 L |
| Transmission Oil Tank | 38 L |
| Drive Axle Oil | 28 L |
| Equalizer Bar Oil | 46 L |
