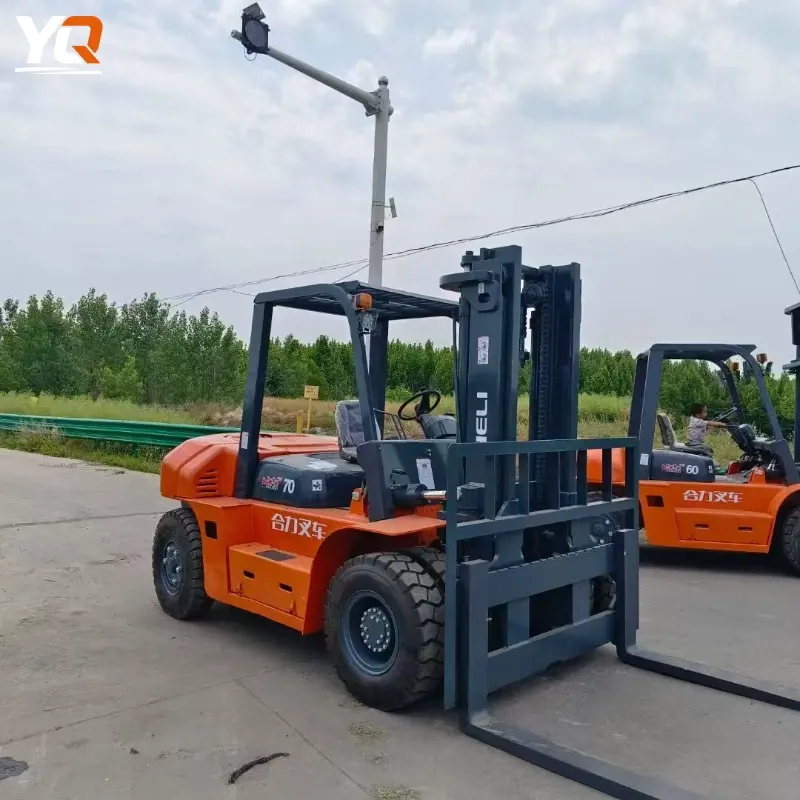

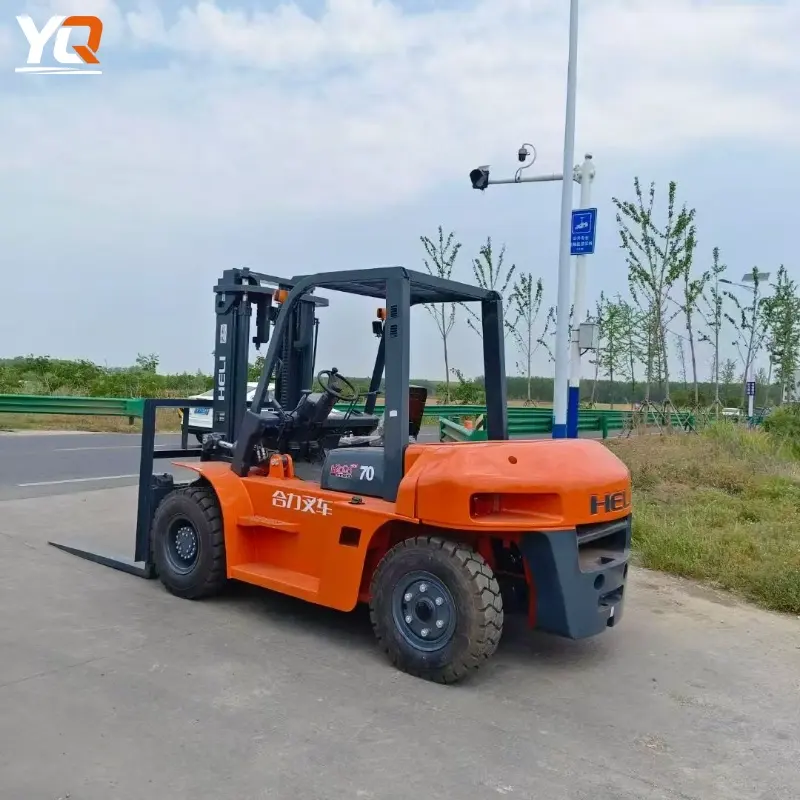

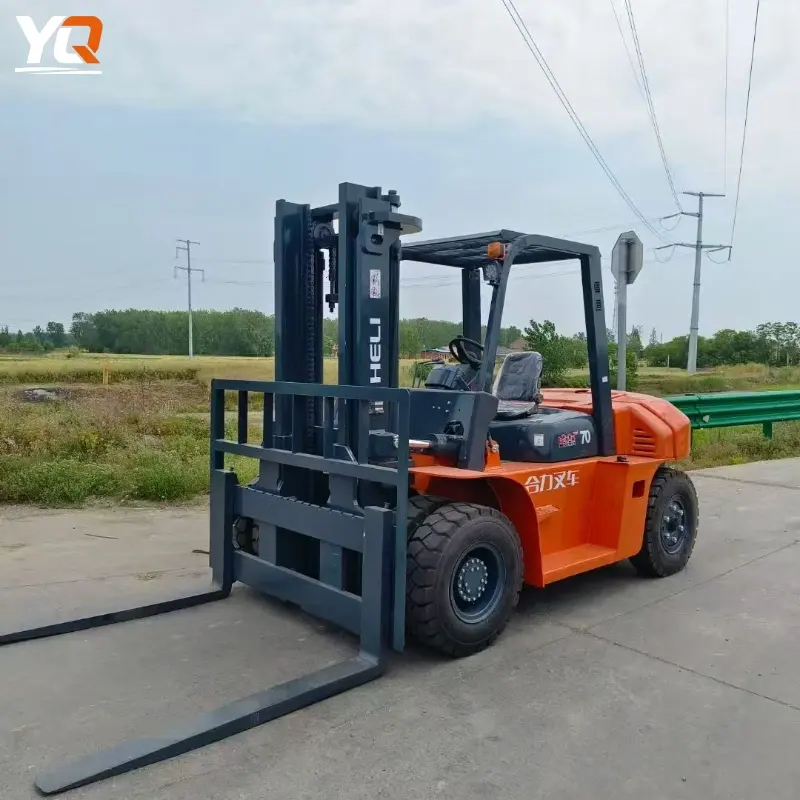

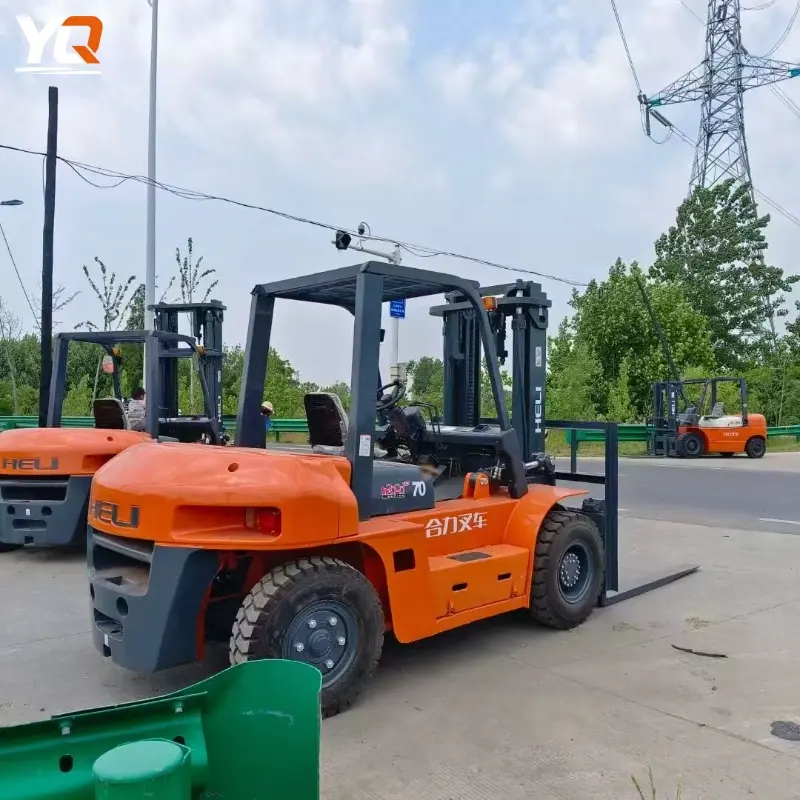

Powerful Used Heli 70 Heavy Forklift 7 Ton Solution For Sale

Description

Basic Load & Power Parameters

Parameter Item	Value
Model	HELI CPCD70
Rated Load Capacity	7000 kg (7 tons) (at load centre distance of 600 mm)
Load Centre Distance	600 mm
Power Type	Internal combustion diesel engine
Rated Power	approx. 83 kW (≈111 hp)
Engine Brand/Model	Quanchai/ Xichai/ Cummins, etc. (depending on configuration)

Overall Dimensions & Weight

Parameter	Value
Service Weight	approx. 9350 kg (typical)
Overall Length (including forks)	approx. 4800–4840 mm
Overall Width	approx. 1995–2045 mm
Overall Height (overhead guard)	approx. 2450 mm
Standard Lifting Height	3000 mm (higher mast optional)
Free Lift Height	≈ 200 mm
Minimum Turning Radius (outer side)	≈ 3370 mm

Performance Indicators

Parameter	Value
Maximum Travel Speed (loaded/unloaded)	≈ 26 / 30 km/h
Maximum Lifting Speed (unloaded/loaded)	approx. 460–470 mm/s (unloaded) / 420–450 mm/s (loaded) (typical)
Maximum Gradeability (loaded/unloaded)	~20% (approx.)
Tilt Angle (forward/rearward)	approx. 6° / 12°
Fork Dimensions (L×W×T)	approx. 1220×150×65 mm

Tires & Chassis

Item	Parameter
Tire Specifications (front/rear)	usually equipped with 8.25-15-14PR industrial pneumatic tires (matched)
Wheelbase	approx. 2250 mm

Parameter Summary (Example Table)

Item	CPCD70 7 t
Rated Load Capacity	7000 kg
Load Centre Distance	600 mm
Engine Power	~83 kW
Standard Lifting Height	3000 mm
Service Weight	~9350 kg
Overall Dimensions (L×W×H)	approx. 4800×1995×2450 mm
Minimum Turning Radius	~3370 mm
Travel Speed	~26/30 km/h
Gradeability	~20%
