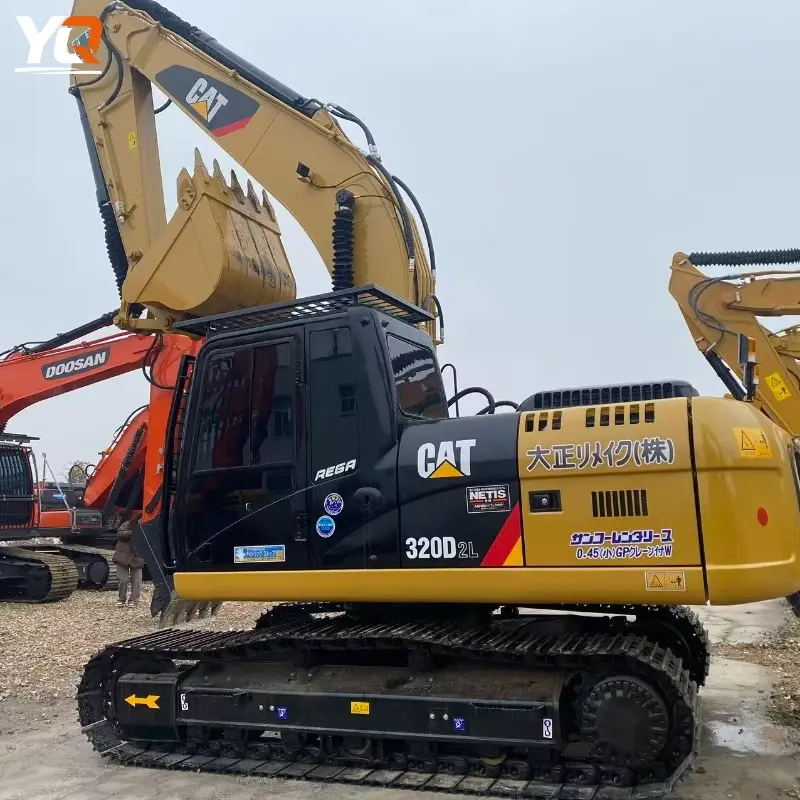

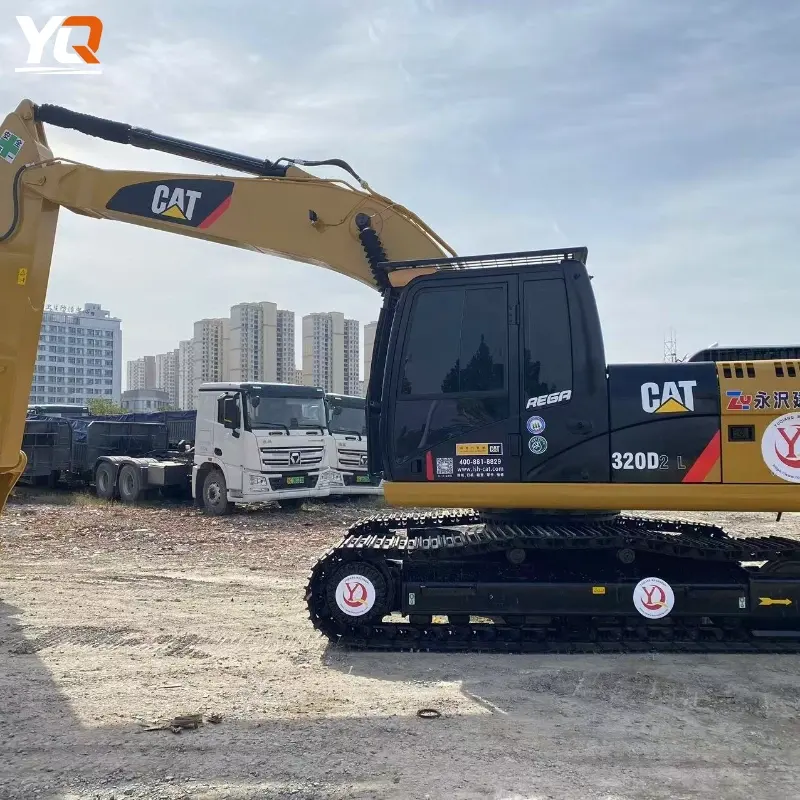

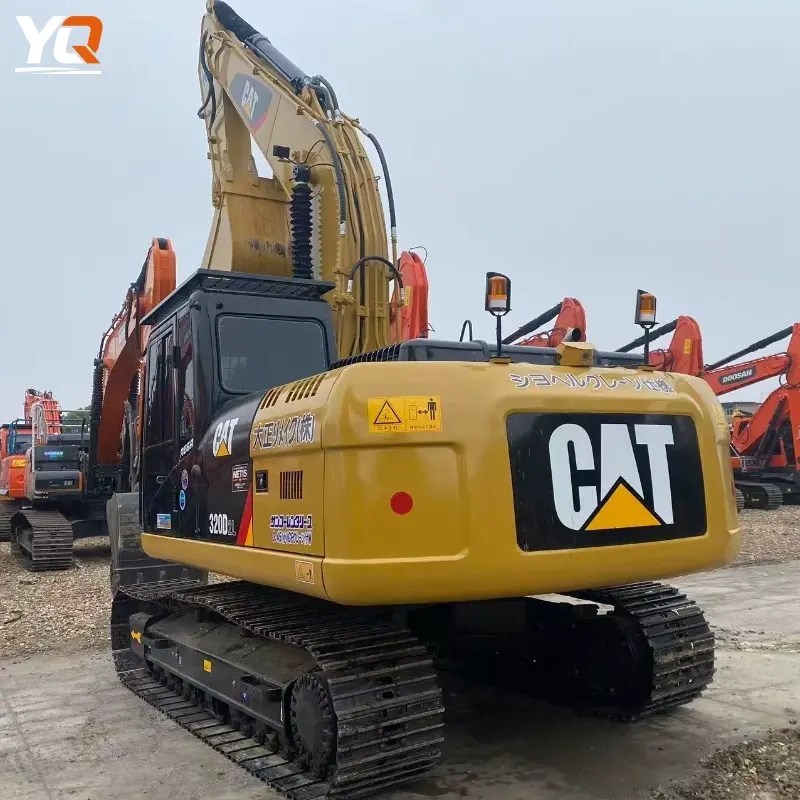

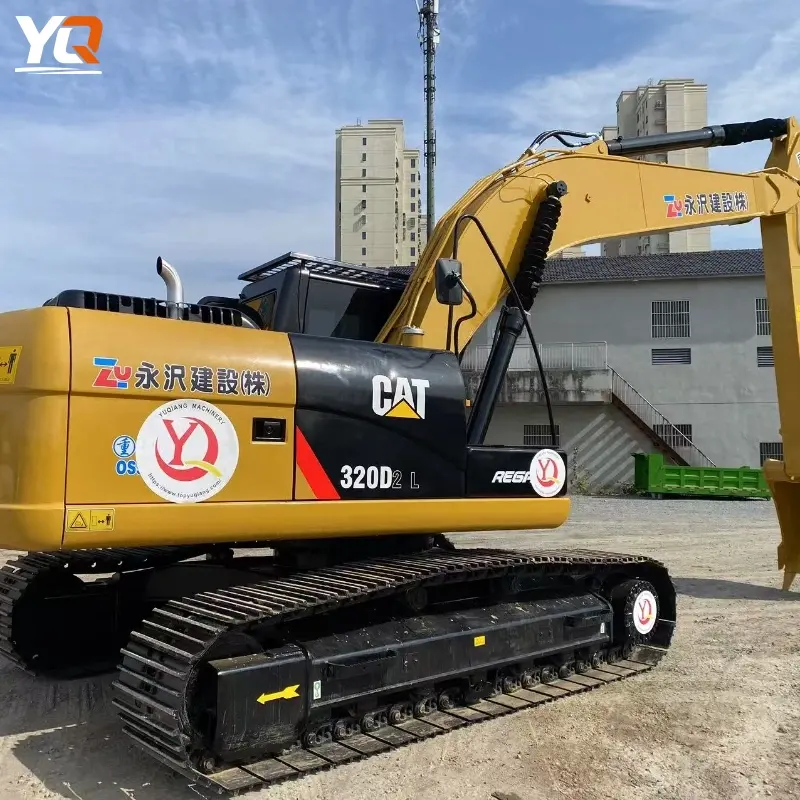

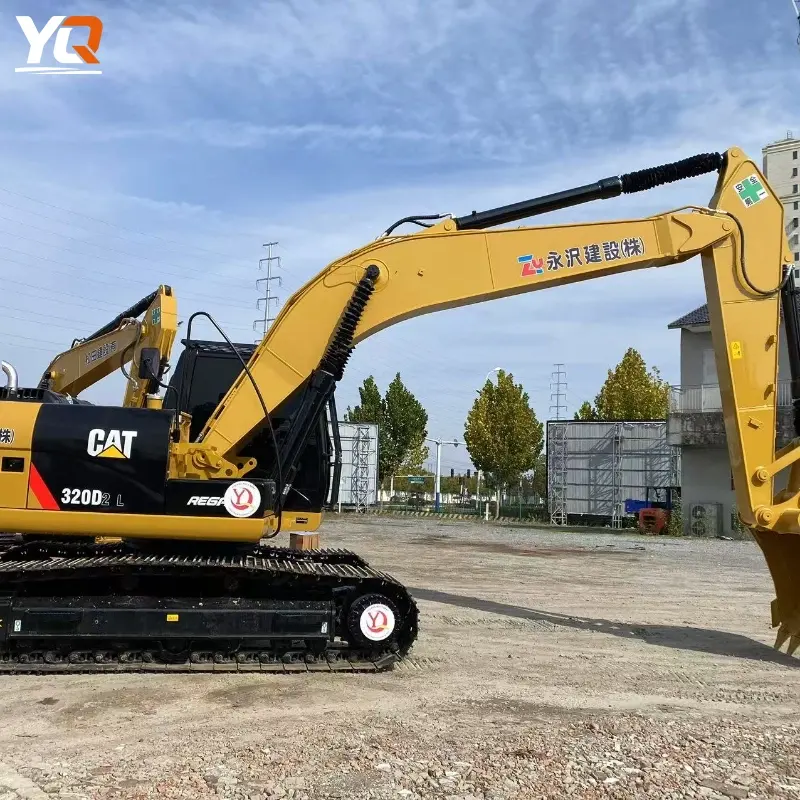

Best Seller Used CAT 320D Excavator 20 Ton Good Condition

Description

Basic Specifications

🔧 Engine

• Engine Model (common): Cat® C6.4 ACERT™ or Cat 3066TA (depending on version)
• Rated Net Power: ≈ 103–140 kW / 138–190 hp
  (varies by region and emission standard)
• Displacement: Approx. 6.37 L (389 cu in)

⚖️ Weight & Dimensions

Parameter	Typical Value
Operating Weight	~20,300 – 23,500 kg (≈ 20.3 – 23.5 t)
Fuel Tank Capacity	~410 L
Overall Length	~9,450 mm (with boom)
Overall Width	~2,800 mm (standard tracks)
Overall Height (to cab top)	~3,030 mm
Ground Clearance	~440–450 mm
Tail Swing Radius	~2,750 mm

🧱 Main Operating Performance

Performance Item	Typical Value
Maximum Digging Depth	~6,240 – 6,670 mm (≈ 20′6″–21′10″)
Maximum Horizontal Reach	~9,400 – 9,850 mm (≈ 30′10″–32′4″)
Maximum Dumping Height	~9,240 – 9,760 mm
Bucket Capacity	~0.57 – 1.56 m³ (common configurations)
Bucket Digging Force	~149 kN (version-dependent)
Swing Speed	~11.0 – 11.5 rpm

🛠️ Hydraulics & Travel

Parameter	Value
Main Pump Maximum Flow	~204–210 L/min
Total Hydraulic System Capacity	~260–270 L
Maximum Working Pressure (implement / travel)	~35,000 kPa (≈ 5,076 psi)
Travel Speed	~3.5–5.5 km/h

📊 Other Typical Data

• Engine Oil Capacity: ~30 L
• Hydraulic Oil Tank Capacity: ~140 L (single tank)
• Maximum Tractive Force: ~206 kN (≈ 21 tf)
• Standard Track Shoe Width: ~600 mm
