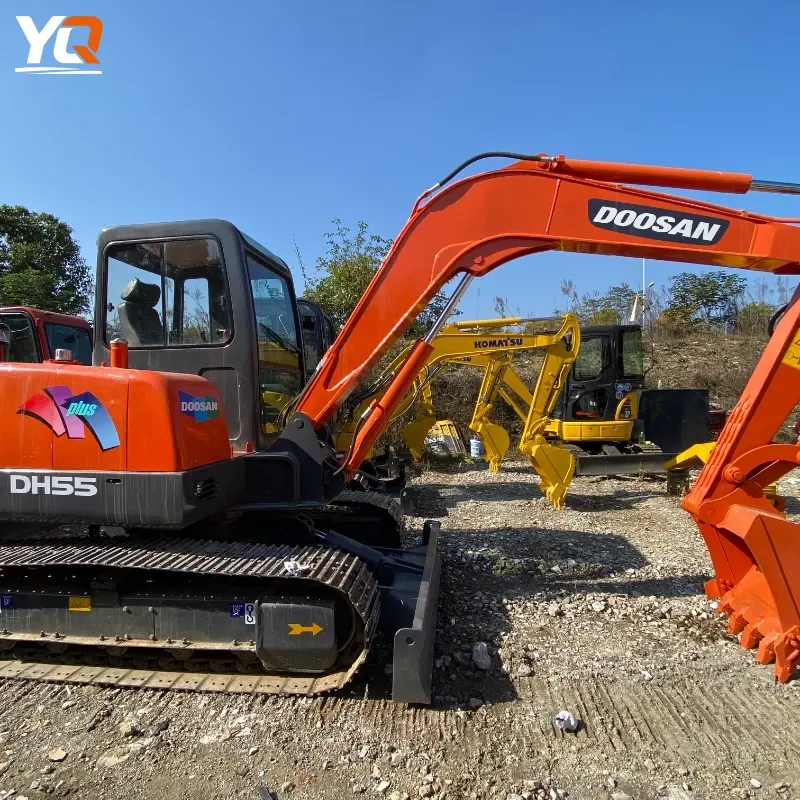

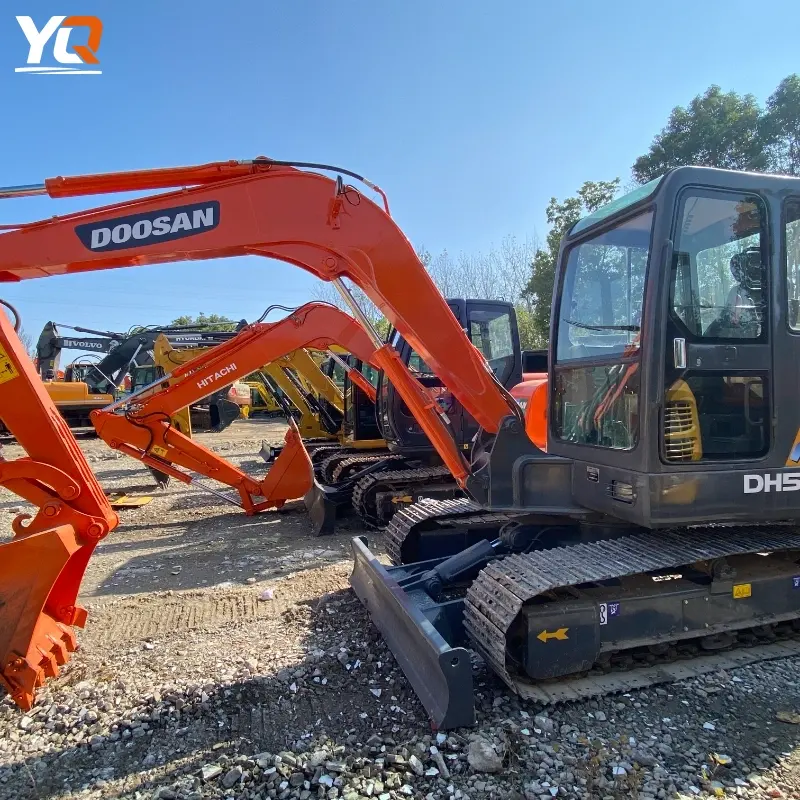

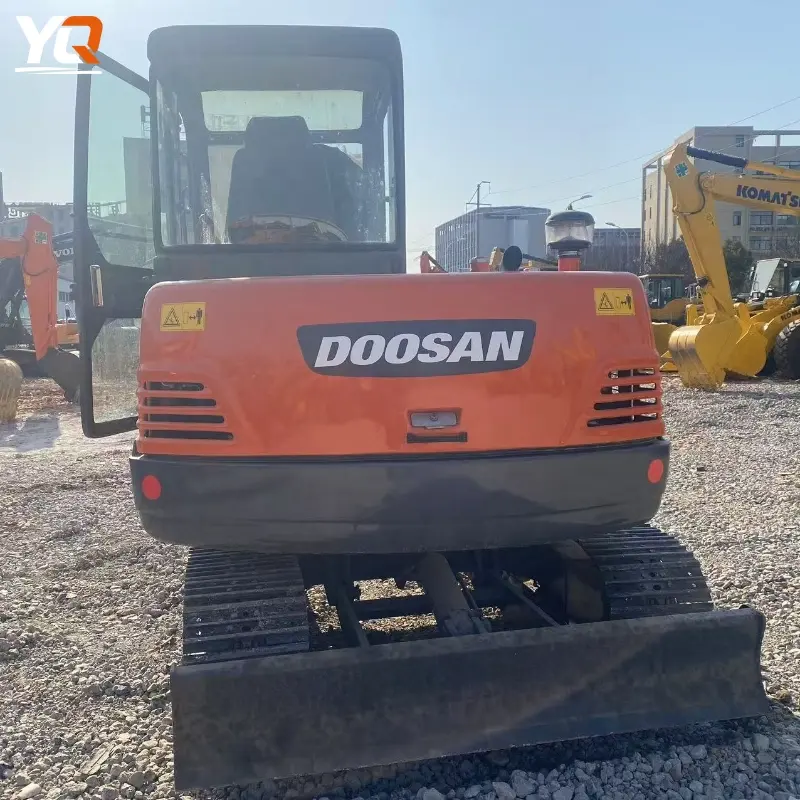

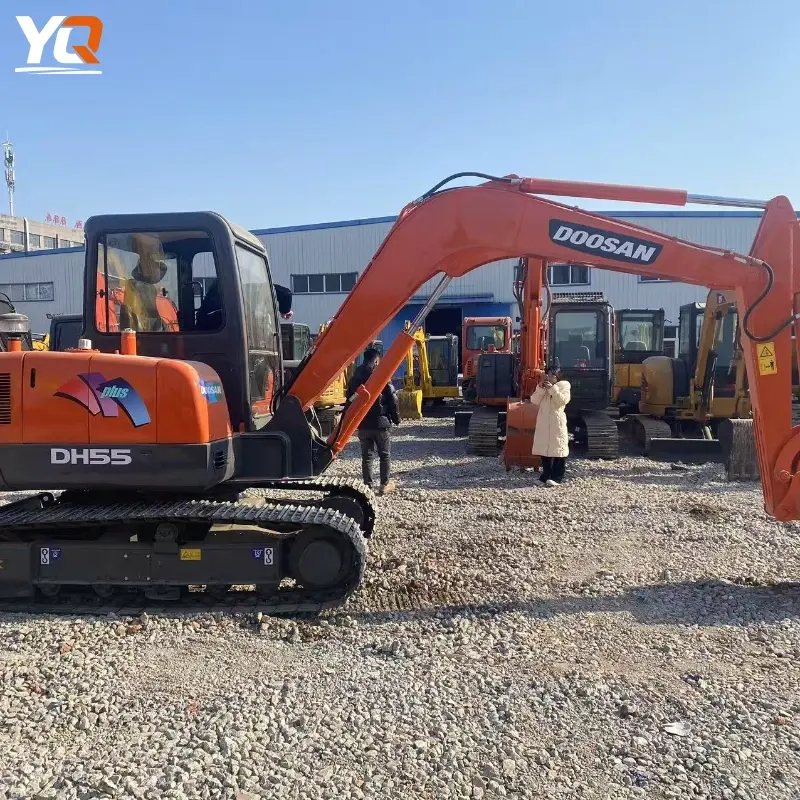

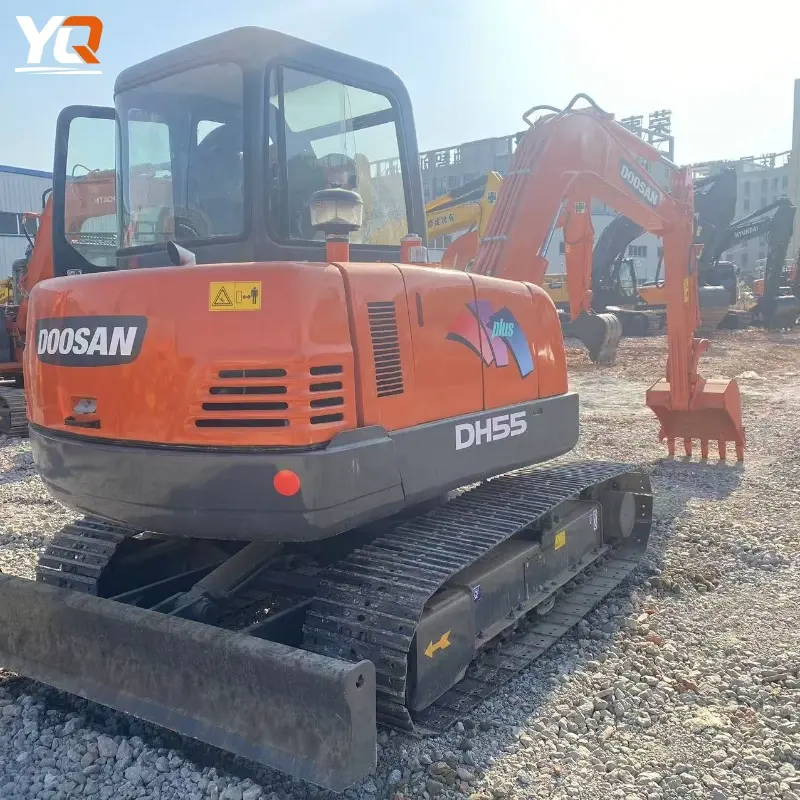

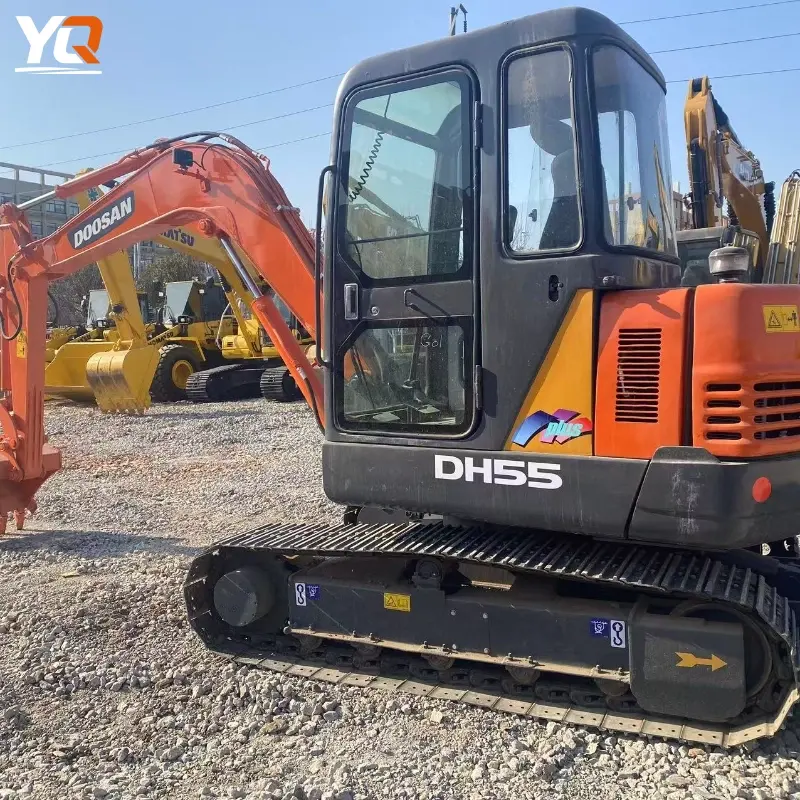

Compact Used Doosan DH55 Mini Excavator Good Condition For Farming

Description

I. Basic Specifications

• Model: Doosan DH55 / DH55-V Mini Excavator (approx. 5-ton class)
• Operating Weight: ~ 5,250 kg (approx. 5.3 tons)
• Bucket Capacity: ~ 0.175 m³ (standard configuration)
• Engine: Isuzu 4JB1 water-cooled diesel engine
• Rated Power: ~ 40.5 kW (approx. 54.9 hp) @ 2,200 rpm
• Cooling Method: Water-cooled

II. Power & Performance

Item	Value
Engine Model	Isuzu 4JB1 (4-cylinder)
Rated Power	~ 40.5 kW @ 2200 rpm
Bucket Digging Force	~ 31.4 kN
Arm Digging Force	~ 24.5 kN
Swing Speed	~ 2200 rpm (system maximum, representing engine/swing synchronous working condition)
Travel Speed	~ 2.4 – 3.8 km/h

Note: Different versions (early DH55 / later DX55-9C) vary in engine brand/emission standards and hydraulic calibration.

III. Hydraulic System

Item	Parameter
Maximum Main Pump Flow	~ 2×55 L/min (variable displacement axial piston pump)
Working Hydraulic Pressure	~ 20.6 MPa (equipment circuit)
Travel/Swing Circuit Pressure	~ 17.65 MPa
Pilot Pump Flow	~ 14.3 L/min

IV. Operating Performance (Typical)

Indicator	Value (approx.)
Maximum Digging Depth	~ 3,890 mm
Maximum Digging Radius	~ 6,170 mm
Maximum Digging Height	~ 6,918 mm
Maximum Dumping Height	~ 5,032 mm

V. Dimensions & Chassis

Item	Value (approx.)
Transport Length	~ 5,940 mm
Transport Width	~ 1,880 mm
Transport Height	~ 2,565 mm
Track Shoe Width	~ 400 mm
Track Gauge	~ 1,480 mm
Minimum Ground Clearance	~ 350 mm
Rear Swing Radius	~ 1,550 mm
